SG581

SAB Goblin Kraken 580 Nitro

SKU: SG581
Availability: In stock
Purchase and Earn 819 Points
$819.00

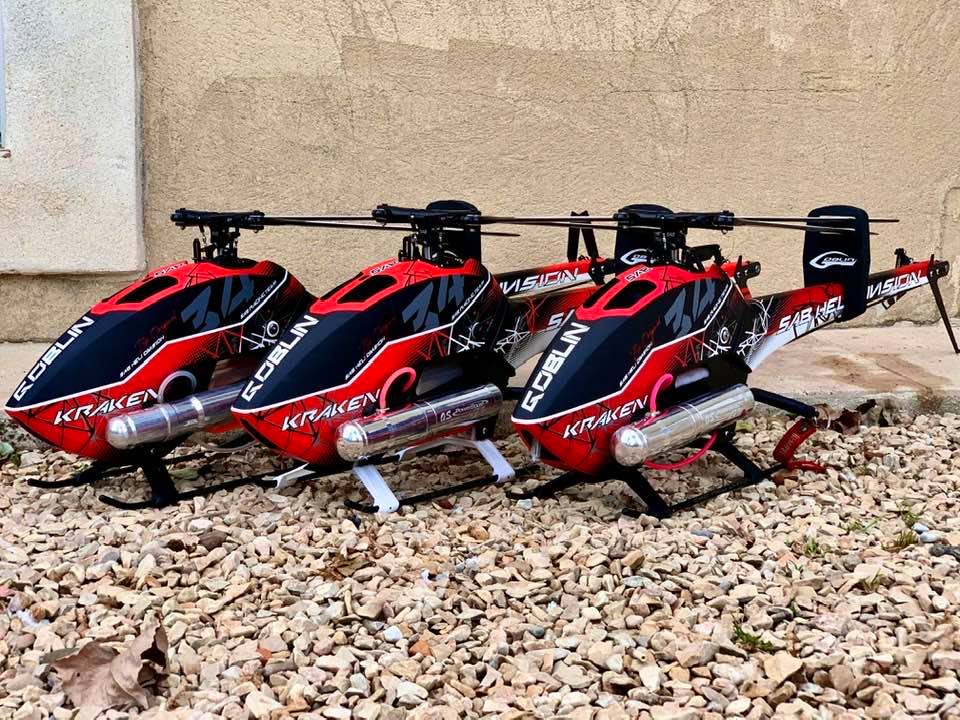

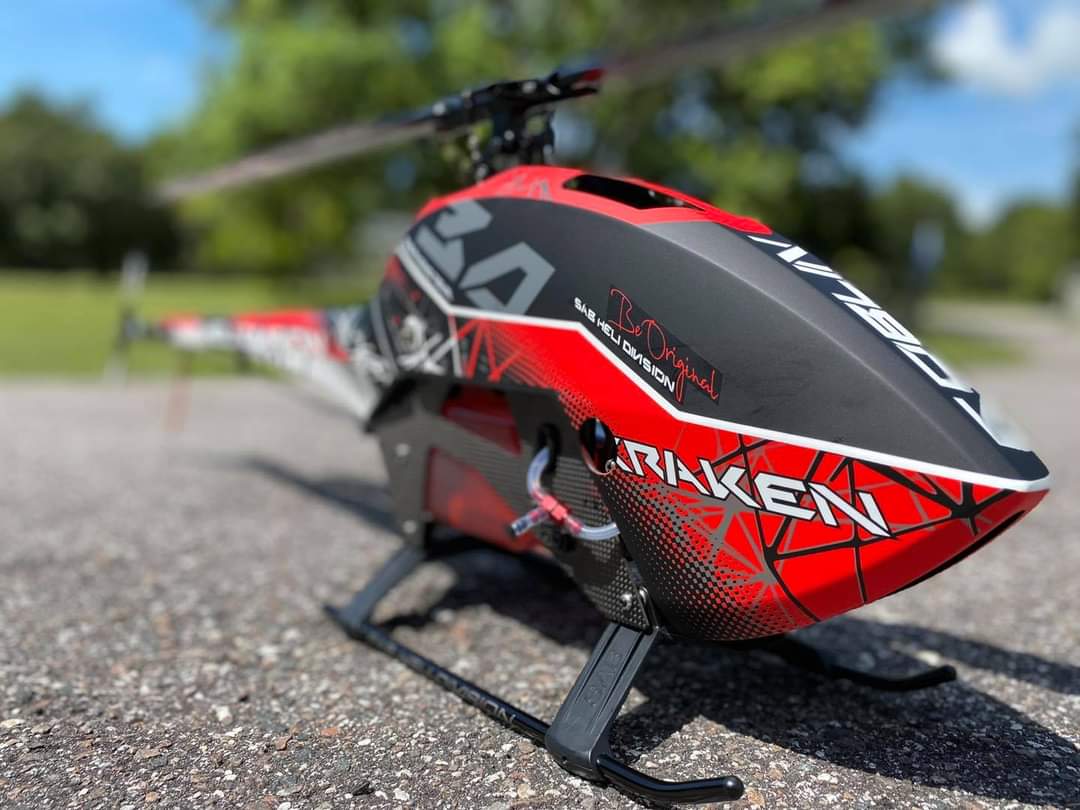

SAB Goblin Kraken 580 Nitro

Technical Specifications:

  • RTF Approx. Weight: 3090 grams (no fuel)

  • Main blade length: 550mm to 600mm (570 mm included)

  • Tail blade length: 95 to 105 mm (95mm included)

  • Cyclic Servos: Mini size 35 mm (Standard size 40mm option)

  • Tail Servo: Standard size 40mm

  • Main Rotor Ratio: 7.98 to 7.4 :1 (26T included: 7.98:1)

  • Tail Rotor Ratio: 5.3-4.9:1 (23T included: 4.9:1)

  • Engine: .50 to .60 Nitro Heli Engine

  • Tank size: 440ml

  • RX battery size: 2S -1800 mAh

Kit upgrades
Total price
SAB Goblin Kraken 580 Nitro $819.00
Total $819.00

Helicopter Main Data

580N
Configuration 580/600
Available P/N SG581
Main rotor diameter 1270mm with 570mm Main Blades
Main blade length 570mm to 600mm
Tail rotor diameter 260mm with 95mm Tail Blades
Tail blade length 95mm to 105mm
Main shaft diameter 10mm
Tail shaft diameter 5mm
Weight 3090 grams (no fuel)

Helicopters Secondary Data

Cyclic Servos Mini Size 36mm
Tail Servo Standard size 40mm
Typical speed controller
Maximum motor size .50 to .60 Nitro Heli Engine
Motor KV
Battery compartment
Battery capacity 2S 1800
Available ratios 7.98 to 7.4 :1

Spare Parts

Kraken Nitro Frame
H1250-S Kraken Nitro Frame
$54.00
Aluminum Main Blades Grip Black Matte
H1368-S Aluminum Main Blades Grip Black Matte
$48.00
Oring Damperner
H1216-S Oring Damperner
$19.00
Aluminum Swash Leveler V1
H1296-S Aluminum Swash Leveler V1
$22.00
Steel Main Gear
H1208-S Steel Main Gear
$39.00
Steel Pinion
H1209-S Steel Pinion
$18.00
Steel Main Shaft
H1299-S Steel Main Shaft
$18.00
Plastic Fan Case
H1287-S Plastic Fan Case
$24.00
Steel Engine Shaft
H1369-S Steel Engine Shaft
$26.00
Frame Support Back
H1380-S Frame Support Back
$19.00
Aluminum Main Pulley 54T
H1379-S Aluminum Main Pulley 54T
$32.00
Aluminum Swash Leveler V2
H1385-S Aluminum Swash Leveler V2
$22.00
Goblin Kraken 580 Nitro Manual

Goblin Kraken 580 Nitro Manual
