HE009

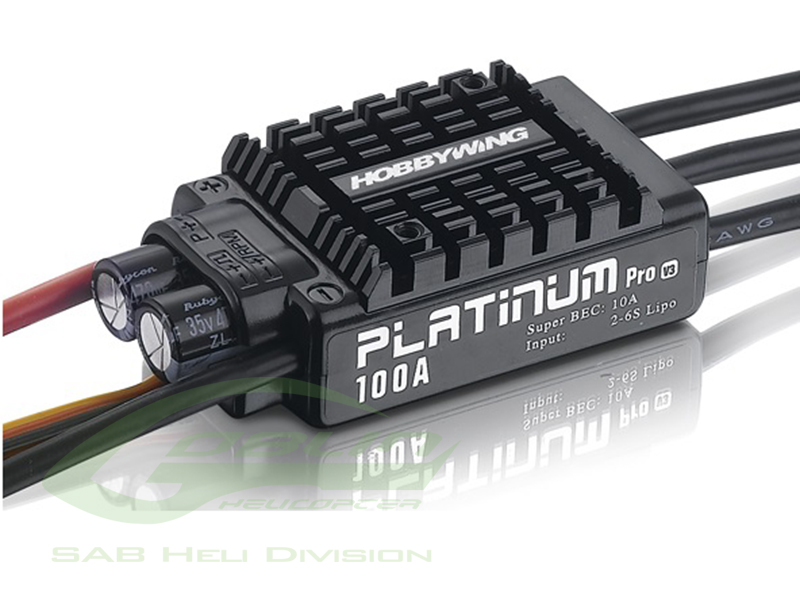

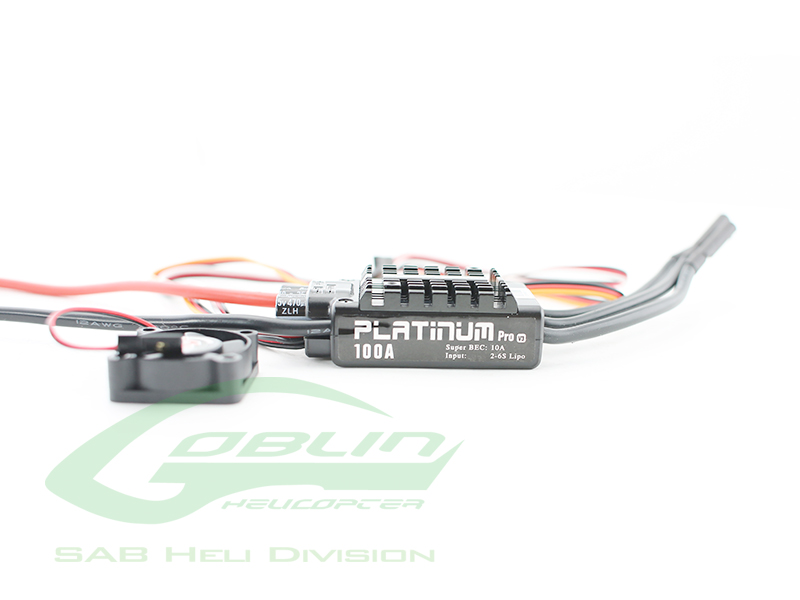

ESC Hobby Wing Platinum 100A V3

SKU: HE009 bar code: 8935254806677
Availability: Out of stock
Purchase and Earn 84 Points
$84.00
ESC Hobby Wing Platinum 100A V3
ESC Hobby Wing Platinum 100A V3

Includes:

- ESC Hobby Wing Platinum 100A V3 x 1pcs

Use for:

- Goblin 500/500 Sport

Model

Platinum-100A-V3 (30204101013)

Main Application

480-550 class (helis)

Battery Count

2-6S LiPo, 5.2V-25.2V

Cont./Burst Current

100A/150A (burst in 10 sec)

BEC Output

Switch Mode BEC 6.0V/7.4V/8.4V  Cont.: 10A Burst: 25A
BEC has cut-through protection (Battery voltage will not get through to the receiver if BEC is accidentally damaged)

Input/Output Wire

Input: 12AWG / Output:12AWG, 4mm Gold plated bullet connectors

Weight

Size

104g (W/O Fan)
70mm*35mm*21mm(W/O fan)

110g (W/ Fan)
70mm*35mm*32mm(W/ fan)
