SG573

GOBLIN 570 SPORT YELLOW

SKU: SG573 bar code: 8935254812050
Availability: In stock
Purchase and Earn 639 Points
$639.00
GOBLIN 570 SPORT YELLOW
GOBLIN 570 SPORT YELLOW
Risorsa 1
Blade Size 570
icona-peso
Weight (no battery/fuel) 2370g
battery-icon_1
Power supply 12S 2600/3300 mAh

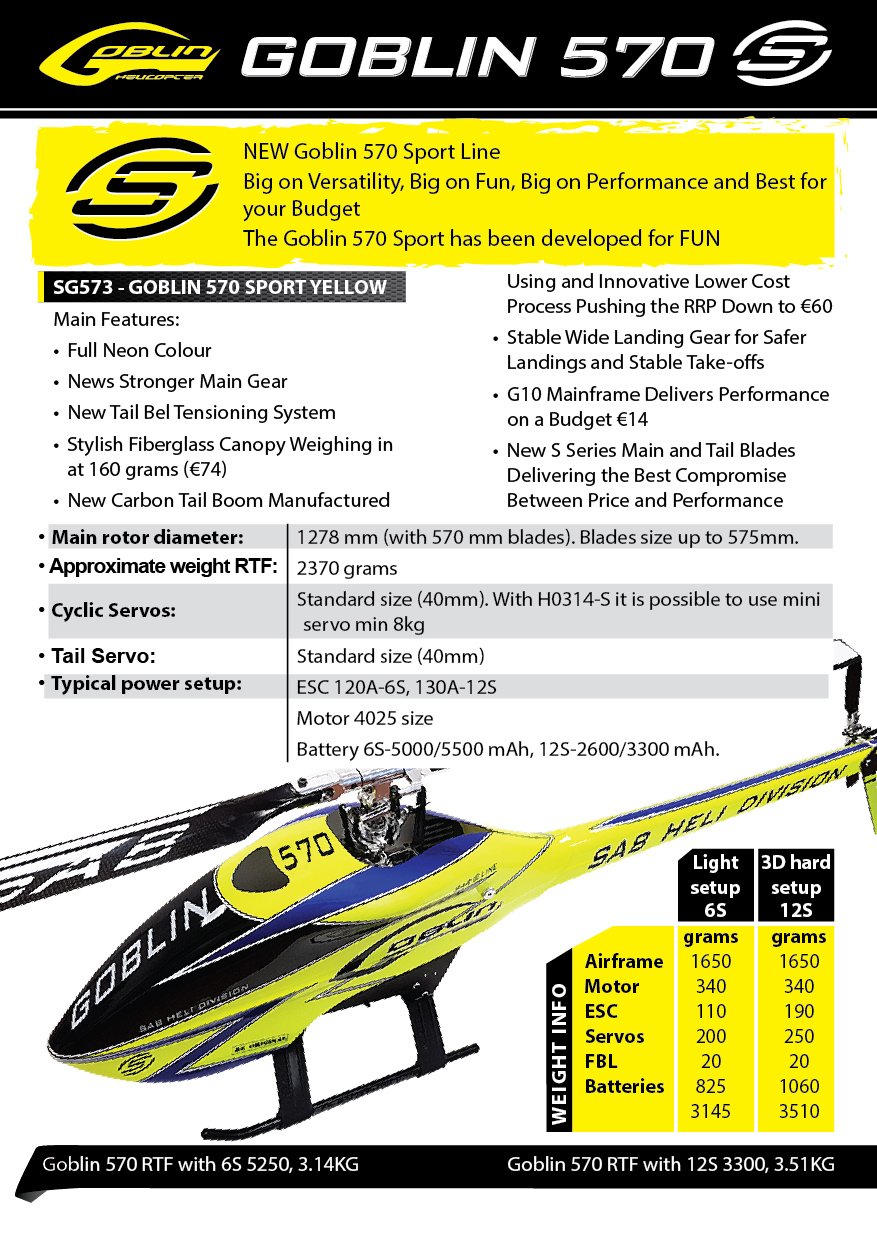

Big on Versatility, Big on Fun, Big on Performance and Best for your Budget.

The Goblin 570 sport had been developed to provide a lot of fun

Key spare parts have been developed to deliver performance and style in line with our Thunder Family while maintaining the value for money features of our Sport Line.


  • Special Features:

    Full Neon Colour

  • News Stronger Main Gear

  • New Tail Belt Tensioning System

  •  Stylish Fiberglass Canopy Weighing in at 160 grams (€74)

  • New Carbon Tail Boom Manufactured Using and  Innovative Lower Cost Process Pushing the RRP Down to €60 Stable Wide Landing Gear for Safer Landings and Stable Take-offs

  • G10 Mainframe Delivers Performance on a Budget €14

  • New S Series Main and Tail Blades Delivering the Best Compromise Between Price and Performance

Kit Includes:

• 21T motor pulley (other pulley sizes available)

• 1 battery tray with straps

• 570 mm main blades

• 95 mm tail blades







Kit upgrades
Total price
GOBLIN 570 SPORT YELLOW $639.00
Total $639.00

Helicopter Main Data

570-data
Configuration 12S Setup
Available P/N SG573-SG574-SG575
Main rotor diameter 1278mm
Main blade length 570mm
Tail rotor diameter 260mm
Tail blade length 95mm
Main shaft diameter 10mm
Tail shaft diameter 6mm
Weight 2370g (ex. Battery)

Helicopters Secondary Data

Cyclic Servos Standard size 40mm
Tail Servo Standard size 40mm
Typical speed controller 6S 120A 12S 130A
Maximum motor size 52 mm diameter x 58 mm height
Motor KV 6S 1000-1400KV 12s 500-700KV
Battery compartment 6S 50x60x200 mm 12S 50x45x280 mm
Battery capacity 6S 5000/5500 mAh 12S 2600/3300 mAh
Available ratios From 8.5 to 12.9

Spare Parts

Nylon Nut M2.5
HC200-S Nylon Nut M2.5
$5.00
Nylon Nut M3
HC206-S Nylon Nut M3
$4.00
Shims 5x7x0,1
HC450-S Shims 5x7x0,1
$4.00

Upgrades

SAB Tool Kit
HM054 SAB Tool Kit
$49.00
SAB Tool Case
HM053 SAB Tool Case
$19.00
