SG740

GOBLIN KRAKEN

SKU: SG740 bar code: 8935254813224
Availability: In stock
Purchase and Earn 1096 Points
$1,096.00

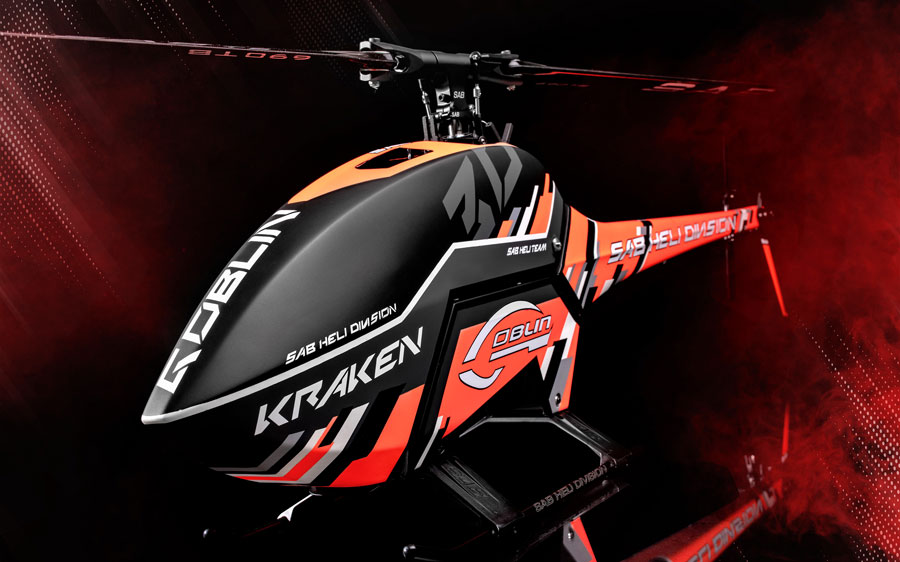

GOBLIN KRAKEN

2011, The first Goblin was introduced.
8 Years later, Goblin Kraken is the new 700 size by SAB Heli Division

Risorsa 1
Blade Size 690
icona-peso
Weight (no battery/fuel) 3900g
battery-icon_1
Power supply 12S 4200/5500 mAh

2011, The first Goblin was introduced.
8 Years later, Goblin Kraken is the new 700 size by SAB Heli Division

• Power train full enclosed in aluminum case.
• Ultra-light, 7075 aluminum alloy highly adjustable rotor head.
• Independent belt shafts for the transmission and the tail.
• Ultra-light Tail case with quick tail fin replacement.
• Full body and boom design with integrated frames.
• Boom detachment system for improved crash durability.

Goblin Kraken introduce again many original solutions never saw in RC Heli world…
Goblin Kraken is the new standard in RC Heli


Kit Includes:

• Motor pulley 21T (other pulley sizes available)

• 2 sets battery tray with strap

• SAB blades and tail blades ( 690 TBS + 105 TBS )



MAIN FEATURES:

TRANMISSION MODULE (patent pending)
• Power train full enclosed in aluminum case.

• Power train support 3 shafts: Main shaft to the rotor, shaft to the motor, shaft to the tail.

• One-way system inside the Module

• Reliable, suitable for transmitting any power, it does not require maintenance.

• Sturdy in case of crash. It is possible to replace the main shaft by removing a single screw.

• The transmission module is supplied assembled and verified, ready to be used.



FEATURES

• Power train full enclosed in aluminum case.

• Ultra-light, 7075 aluminum alloy highly adjustable rotor head. The KRAKEN head allows for a very broad range of dampening setups. The dampers are composed of 3 O-ring (that defines the rigidity) and a techno polymer damper (that defines the maximum possible movement of the spindle). Using different Oring and dampers you can get different responses of the model.

• The blade grips are made from 7075 T6 Aluminum and the blade grip arms are made from 6061 T6 Aluminum. In a crash you can bend the arm, but you will never damage the blade grip. Using 1x M4 screw makes it very easy to replace just the arm.

• Independent belt shafts for the motor transmission and the tail.

• Ultra-light tail case with quick tail fin replacement, 3 mm full carbon side plate, 23 grams lighter than the Thunder tail case. Very simple, strong, reliable & durable

• Full body and boom design with integrated frames.

• Boom detachment system for improved crash durability.

• Kraken ESC support composite tray with sacrificial plastic insert. The edges are covered in rubber for protection...ESC wires are happy:-)

• Wire Support for super east wiring.

• Battery tray.

• Serial Number.

• Goblin Kraken High-tech composite carbon and airex sandwich.



Kit upgrades
Total price
GOBLIN KRAKEN $1,096.00
Total $1,096.00

Helicopter Main Data

kraken-data
Configuration 700
Available P/N SG740
Main rotor diameter 1548mm
Main blade length 690mm
Tail rotor diameter 284mm
Tail blade length 105mm
Main shaft diameter 12mm
Tail shaft diameter 6mm
Weight 3800g (ex. Battery)

Helicopters Secondary Data

Cyclic Servos Standard size 40mm
Tail Servo Standard size 40mm
Typical speed controller 200A
Maximum motor size 62 mm diameter x 70 mm height
Motor KV 500-560KV
Battery compartment 56mmx70mmx320mm
Battery capacity 12S 4200/5500 mAh
Available ratios From 8.8 to 12.1

Spare Parts

Nylon Nut M2.5
HC200-S Nylon Nut M2.5
$5.00
Nylon Nut M3
HC206-S Nylon Nut M3
$4.00
FBL support Low
H0727-S FBL support Low
$10.00
Front Tail Pulley 27T
H1063-27-S Front Tail Pulley 27T
$21.00
Front Tail Pulley 26T
H1063-26-S Front Tail Pulley 26T
$21.00
Main Front Pulley
H1062-S Main Front Pulley
$29.00
Main Frame
H1082-S Main Frame
$29.00
Battery Guide
H1067-S Battery Guide
$19.00
Canopy Base
H1101-S Canopy Base
$24.00
Blade Grip
H1044-S Blade Grip
$33.00
Swashplate set
H1047-S Swashplate set
$56.00
Tail Shaft
H1089-S Tail Shaft
$18.00
Tail Side Plate
H1097-S Tail Side Plate
$19.00
Carbon Tail Plate
H1096-1-S Carbon Tail Plate
$14.00
Tail Fin
H1096-2-S Tail Fin
$11.00
Boom Support
H1061-S Boom Support
$29.00
Nylon Bolts
HC546-S Nylon Bolts
$16.00
Carter DX
H1081-S Carter DX
$29.00
Carter SX
H1080-S Carter SX
$29.00
Carter Connection
H1099-S Carter Connection
$13.00
Landing Gear Rod
H1071-S Landing Gear Rod
$24.00
Motor Support
H1058-S Motor Support
$39.00
Motor Belt
HC535-S Motor Belt
$26.00
Boom Kraken Orange
H1074-S Boom Kraken Orange
$79.00
Tail Blades Grip
H1033-S Tail Blades Grip
$39.00
Blade Grip Arm 30
H1045-S Blade Grip Arm 30
$19.00
Damper
H1046-S Damper
$9.00
Reference Pin
H1048-S Reference Pin
$4.00
Rear Servo Mount
H1059-S Rear Servo Mount
$14.00
ESC Support
H1068-S ESC Support
$19.00
Carter Mount
H1069-S Carter Mount
$12.00
Frame Spacer
H1076-S Frame Spacer
$9.00
Bell Crank
H1090-S Bell Crank
$24.00
Tail Case Spacer
H1093-S Tail Case Spacer
$9.00
Battery Tray
H1102-S Battery Tray
$19.00
Wire Cover
H1107-S Wire Cover
$9.00
Tail Pitch Slider
H1112-S Tail Pitch Slider
$24.00
Tail Slider Bush
H1115-S Tail Slider Bush
$6.00
Carbon Rod Set
HC537-S Carbon Rod Set
$11.00
Grease LDS
HA075-S Grease LDS
$9.90
Grease NBU
HA076-S Grease NBU
$9.90
Set Screw M5x 16
HC543-S Set Screw M5x 16
$5.00
Oring 80 shore
HC530-S Oring 80 shore
$6.00
Oring 95 shore
HC529-S Oring 95 shore
$6.00
Pulley HTD 3M - Z26
H1098-26-S Pulley HTD 3M - Z26
$24.00
Pulley HTD3M - Z27
H1098-27-S Pulley HTD3M - Z27
$24.00
GEAR Z72, 0.75
H1050-S GEAR Z72, 0.75
$36.00
GEAR Z15, 0,75
H1051-S GEAR Z15, 0,75
$18.00
GEAR Z15, 1
H1052-S GEAR Z15, 1
$18.00
One Way Gear
H1053-S One Way Gear
$69.00
Main Shaft
H1054-S Main Shaft
$18.00
Top Structure
H1057-S Top Structure
$69.00
Damper Kit Set
H1135-S Damper Kit Set
$19.00
