SG742

GOBLIN KRAKEN 3 BLADES

SKU: SG742
Availability: In stock
Purchase and Earn 1199 Points
$1,199.00

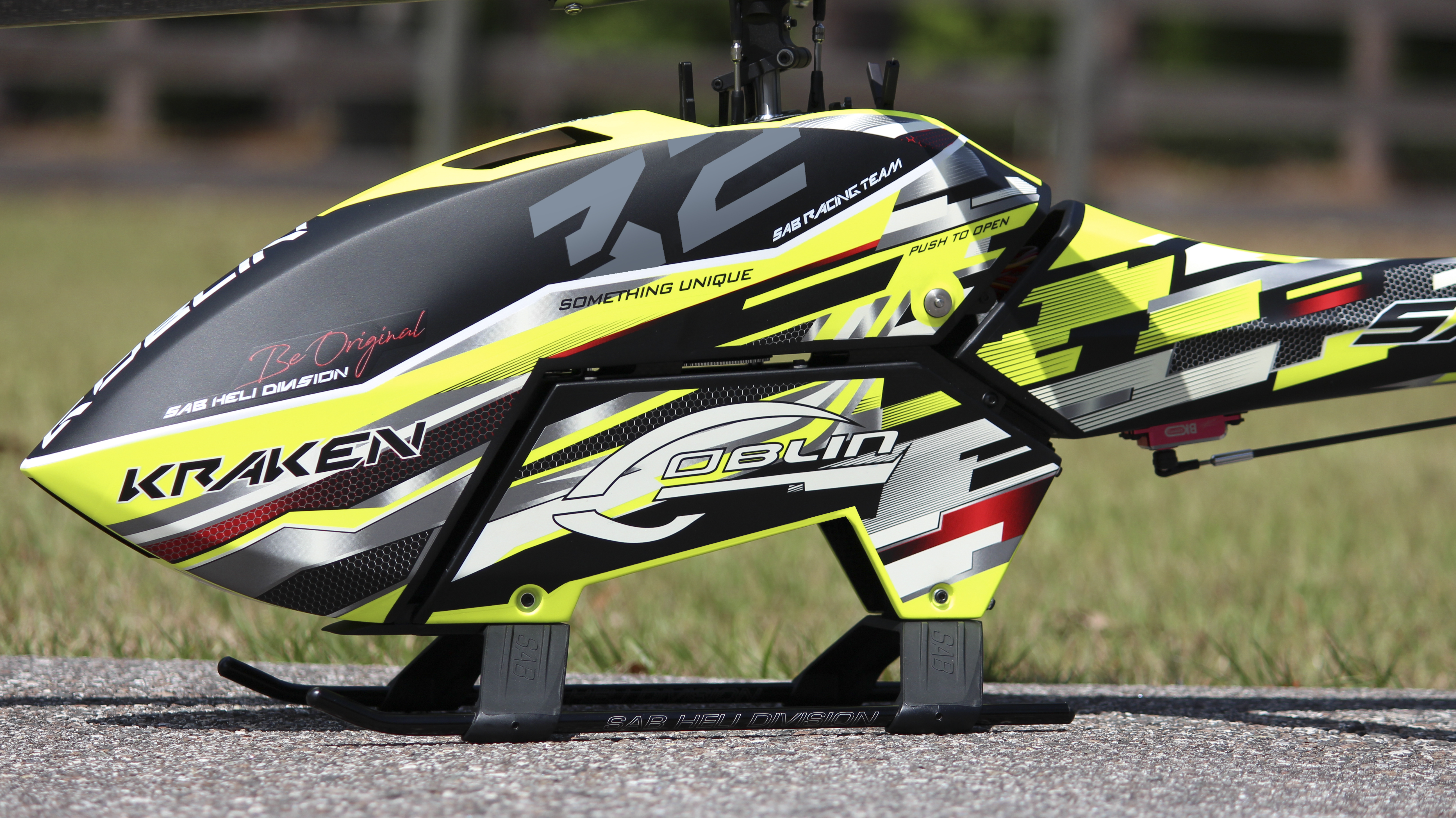

GOBLIN KRAKEN 3 BLADES

The all new Kraken 3-blades kit

Risorsa 1
Blade Size 690
battery-icon_1
Power supply 12S 4200/5500 mAh
icona-peso
Weight (no battery/fuel) 4100 g

• Light canopy, boom, low frames as for SG741

• New graphic scheme, very aggressive, obtained with a new process which adds so many details

• New main and tail rotor obtained as a mix between old HUB and new blade grip, used on Kraken

• New blades 690 mm produced with a new process that optimizes the final weight.



• Power train full enclosed in aluminum case.
• Independent belt shafts for the transmission and the tail.
• Ultra-light Tail case with quick tail fin replacement.
• Full body and boom design with integrated frames.
• Boom detachment system for improved crash durability.

Goblin Kraken introduce again many original solutions never saw in RC Heli world…


Kit Includes:

• Motor pulley 21T (other pulley sizes available)

• 2 sets battery tray with strap

• New SAB blades and tail blades ( 690 3 TBS + 105 3 TBS )



MAIN FEATURES:

TRANMISSION MODULE
• Power train full enclosed in aluminum case.

• Power train support 3 shafts: Main shaft to the rotor, shaft to the motor, shaft to the tail.

• One-way system inside the Module

• Reliable, suitable for transmitting any power, it does not require maintenance.

• Sturdy in case of crash. It is possible to replace the main shaft by removing a single screw.

• The transmission module is supplied assembled and verified, ready to be used.



FEATURES

• Power train full enclosed in aluminum case.

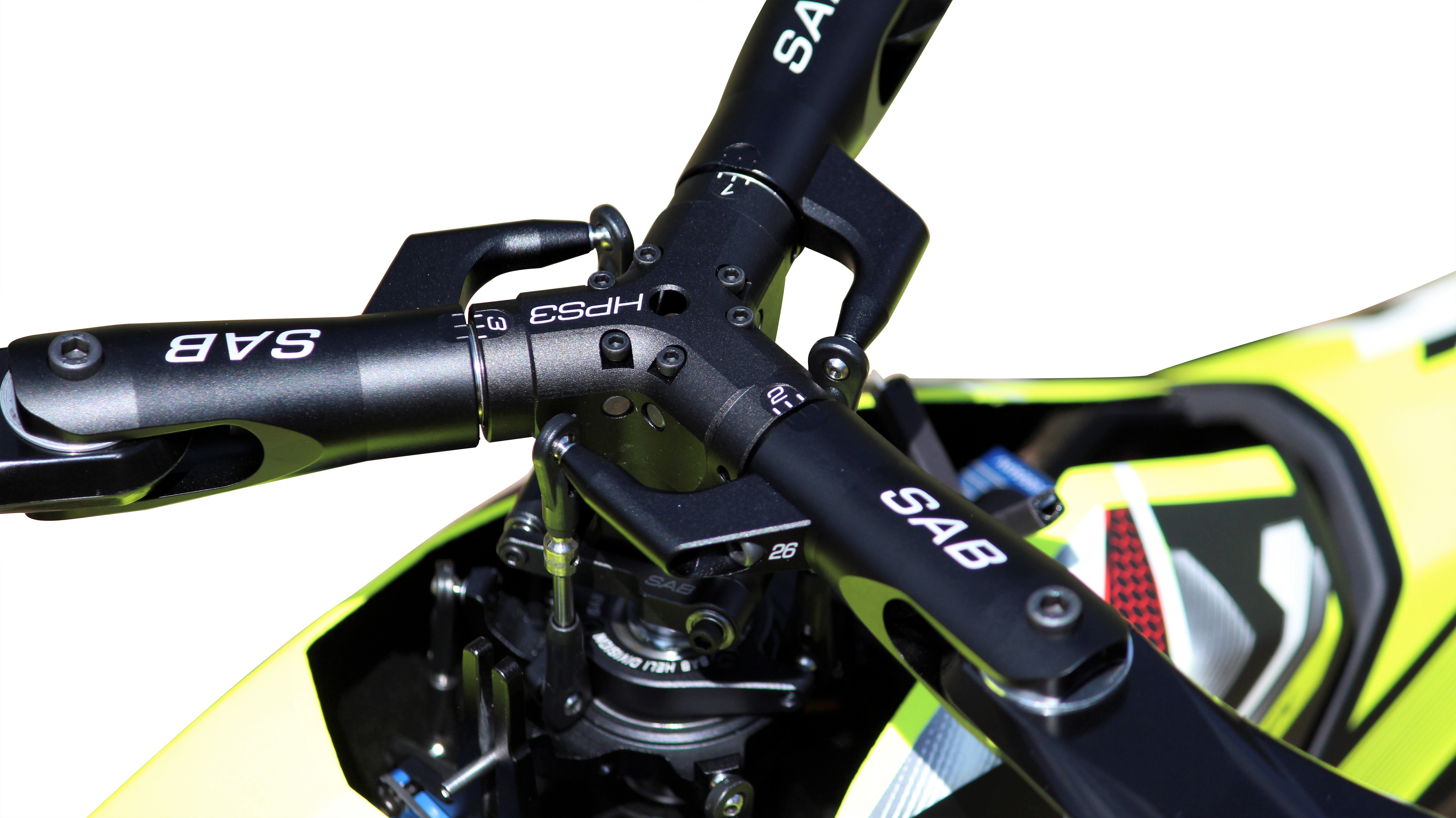

• The blade grips are made from 7075 T6 Aluminum and the blade grip arms are made from 6061 T6 Aluminum. In a crash you can bend the arm, but you will never damage the blade grip. Using 1x M4 screw makes it very easy to replace just the arm.

• Independent belt shafts for the motor transmission and the tail.

• Ultra-light tail case with quick tail fin replacement, 3 mm full carbon side plate, 23 grams lighter than the Thunder tail case. Very simple, strong, reliable & durable

• Full body and boom design with integrated frames.

• Boom detachment system for improved crash durability.

• Kraken ESC support composite tray with sacrificial plastic insert. The edges are covered in rubber for protection...ESC wires are happy:-)

• Wire Support for super east wiring.

• Battery tray.

• Serial Number.

• Goblin Kraken High-tech composite carbon and airex sandwich.

Total price
GOBLIN KRAKEN 3 BLADES $1,199.00
Total $1,199.00

Helicopter Main Data

Configuration 700
Available P/N SG742
Main rotor diameter 1558 mm
Main blade length 690
Tail rotor diameter 284 mm
Tail blade length 115
Main shaft diameter 12 mm
Tail shaft diameter 6 mm
Weight 4100 g

Helicopters Secondary Data

Cyclic Servos Standard size 40 mm
Tail Servo Standard size 40 mm
Typical speed controller 200A
Maximum motor size 62mm diameter x 70mm height
Motor KV 500-560 KV
Battery compartment 56mm x 70mm x 320mm
Battery capacity 12S 4200/5500 mAh
Available ratios From 8.8 to 12.1

Spare Parts

Strap 20x250mm
HA041-S Strap 20x250mm
$6.00
Front Tail Pulley 27T
H1063-27-S Front Tail Pulley 27T
$21.00
Main Front Pulley
H1062-S Main Front Pulley
$29.00
Main Frame
H1082-S Main Frame
$29.00
Battery Guide
H1067-S Battery Guide
$19.00
Canopy Base
H1101-S Canopy Base
$24.00
Blade Grip
H1044-S Blade Grip
$33.00
Tail Side Plate
H1097-S Tail Side Plate
$19.00
Carbon Tail Plate
H1096-1-S Carbon Tail Plate
$14.00
Tail Fin
H1096-2-S Tail Fin
$11.00
Boom Support
H1061-S Boom Support
$29.00
Landing Gear Rod
H1071-S Landing Gear Rod
$24.00
Motor Support
H1058-S Motor Support
$39.00
Tail Blades Grip
H1033-S Tail Blades Grip
$39.00
Damper
H1046-S Damper
$9.00
Reference Pin
H1048-S Reference Pin
$4.00
Rear Servo Mount
H1059-S Rear Servo Mount
$14.00
ESC Support
H1068-S ESC Support
$19.00
Frame Spacer
H1076-S Frame Spacer
$9.00
Bell Crank
H1090-S Bell Crank
$24.00
Tail Case Spacer
H1093-S Tail Case Spacer
$9.00
Battery Tray
H1102-S Battery Tray
$19.00
Wire Cover
H1107-S Wire Cover
$9.00
Tail Slider Bush
H1115-S Tail Slider Bush
$6.00
Pulley HTD 3M - Z26
H1098-26-S Pulley HTD 3M - Z26
$24.00
Pulley HTD3M - Z27
H1098-27-S Pulley HTD3M - Z27
$24.00
GEAR Z72, 0.75
H1050-S GEAR Z72, 0.75
$36.00
GEAR Z15, 0,75
H1051-S GEAR Z15, 0,75
$18.00
GEAR Z15, 1
H1052-S GEAR Z15, 1
$18.00
One Way Gear
H1053-S One Way Gear
$69.00
Main Shaft
H1054-S Main Shaft
$18.00
Top Structure
H1057-S Top Structure
$69.00
Blade Grip Arm 26mm
H1045-B-S Blade Grip Arm 26mm
$19.00
White Landing Gear
H1070-W-S White Landing Gear
$15.00
Swashplate Leveler
H1116-S Swashplate Leveler
$24.00
