SG800

GOBLIN MAVERICK

SKU: SG800
Availability: In stock
Purchase and Earn 1748 Points
$1,748.00

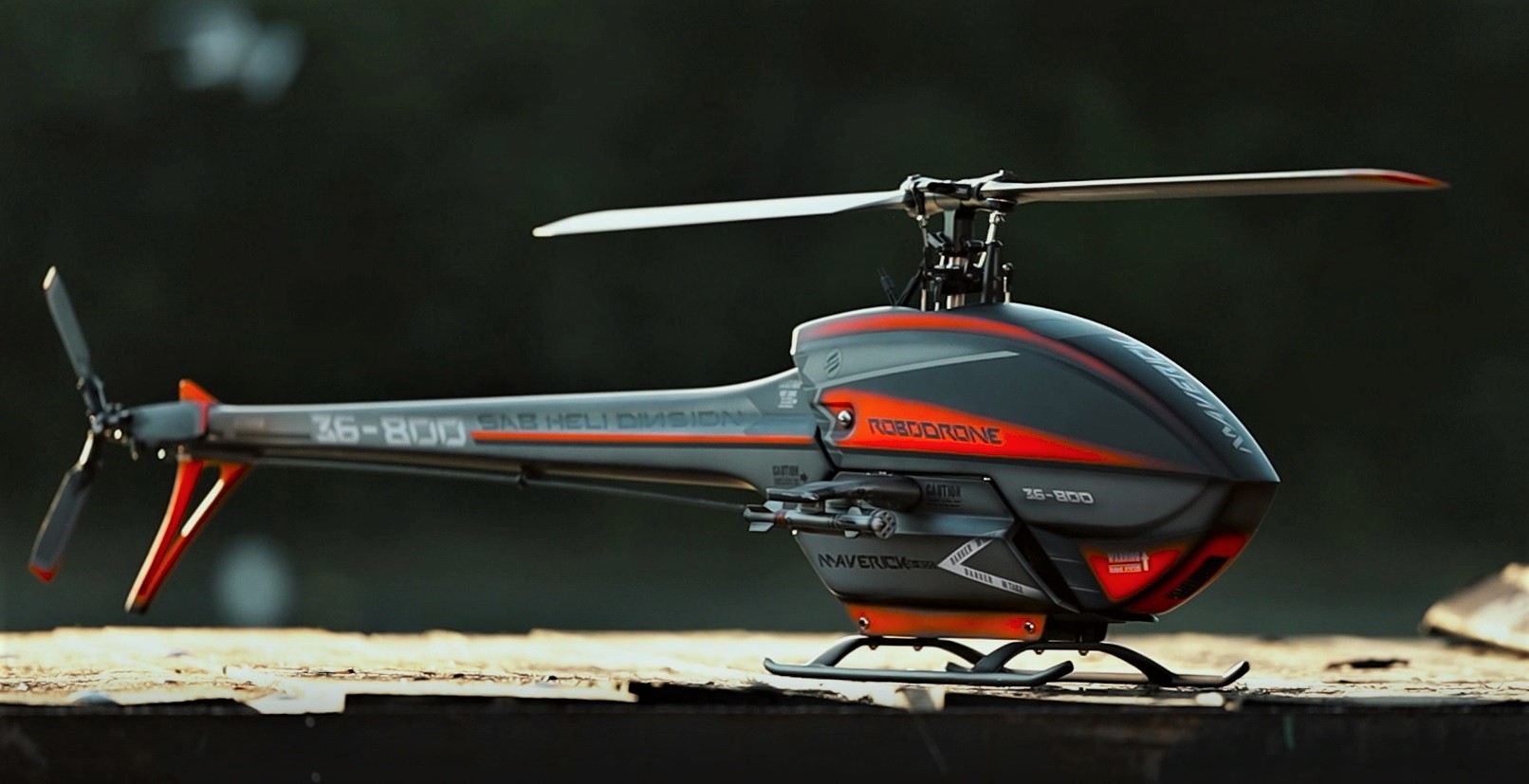

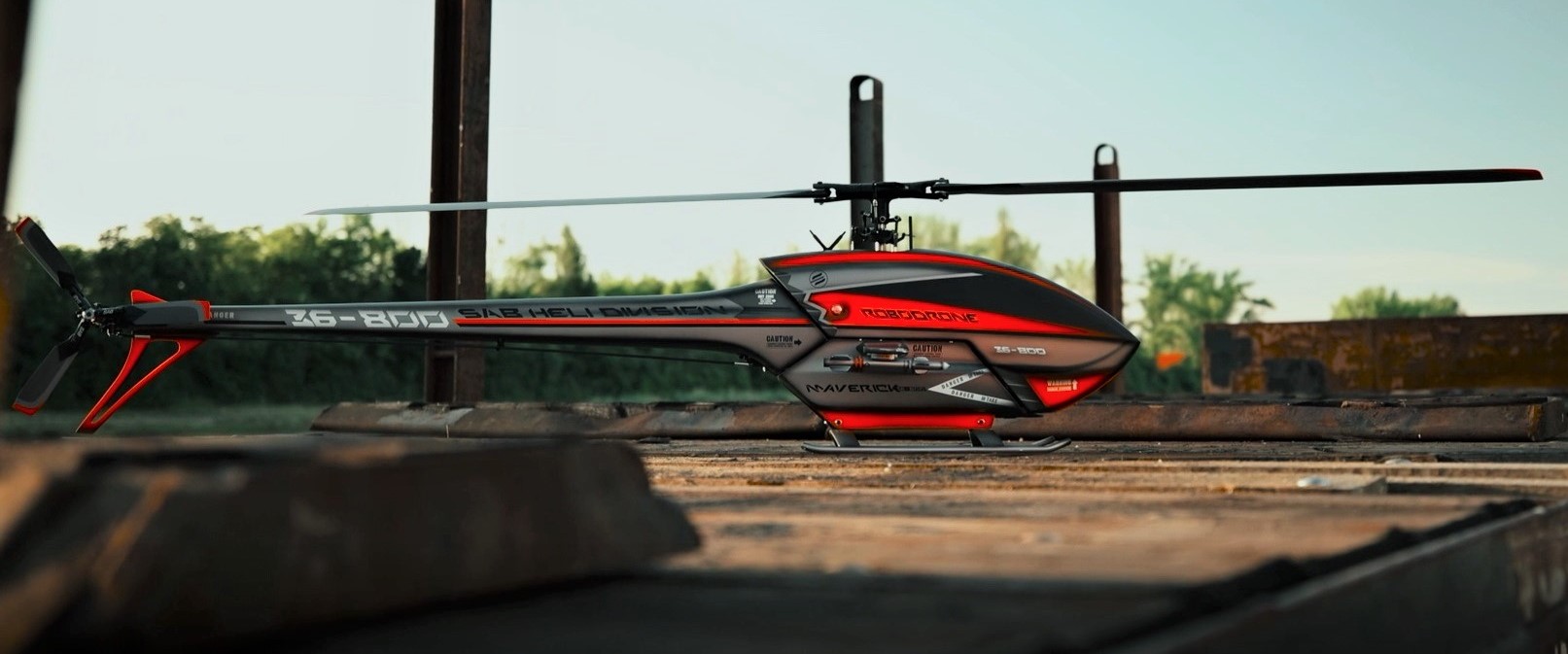

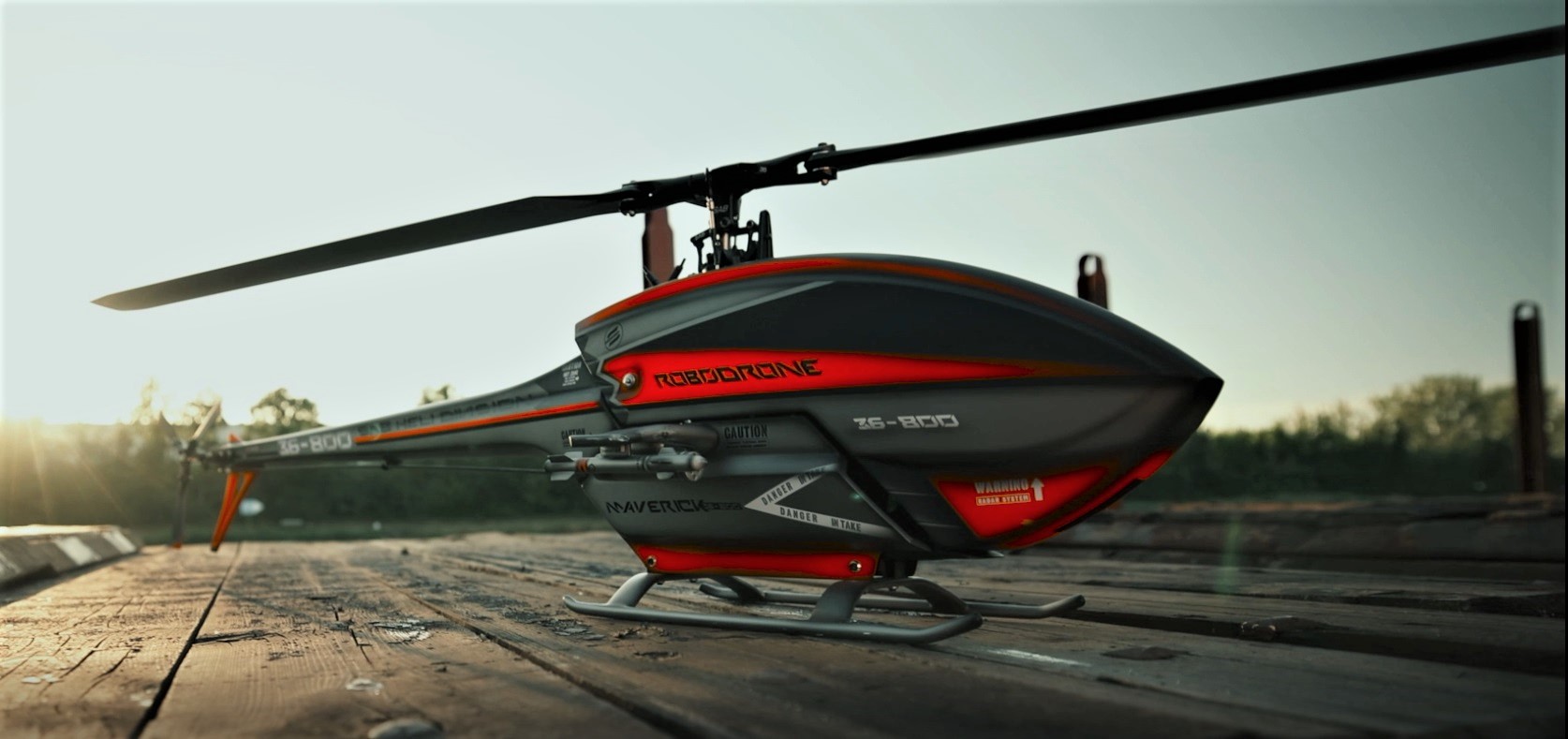

GOBLIN MAVERICK

Making a comparison with Urukay Genesis, the famous model developed to win in the F3C category, here are the main differences:

*       Longer boom that will enable the use of 800mm blades.
*       3-Bladed tail rotor in order to give the correct authority.
*       Rigid transmission module with longer main shaft
*       Aggressive graphic scheme

These are the characteristics of the Urukay Maverick, an important model, prestigious, and perfect for an exciting, powerful and realistic flight… The sound of the 800mm blades is amazing!

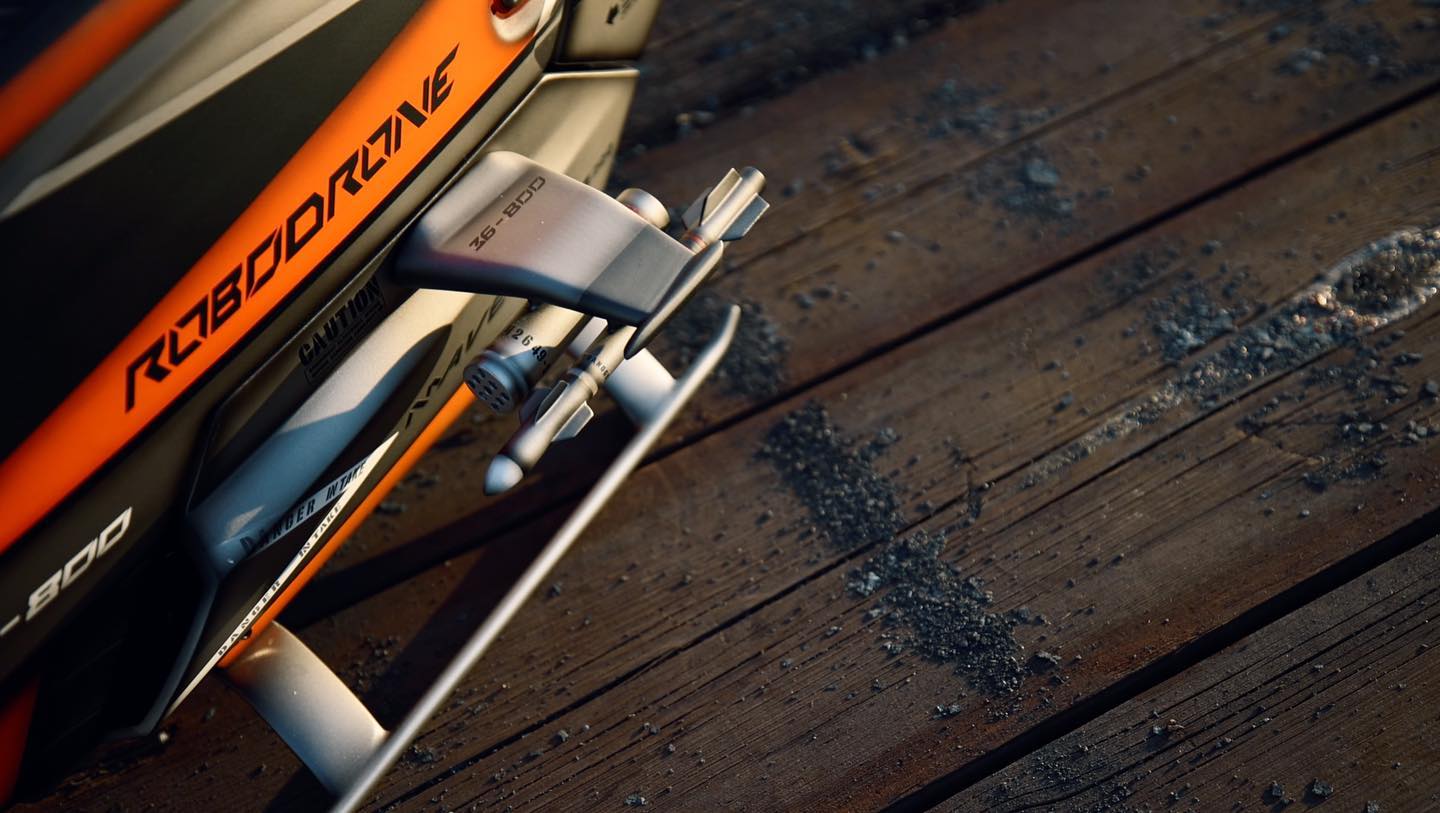

( the KIT includes the simulation of the side missiles )

Risorsa 1
Blade Size 800
icona-peso
Weight (no battery/fuel) 4250gr
battery-icon_1
Power supply 12S 4500/5500 mAh

TECHNICAL SPECIFICATIONS

• AIRFRAME weight: 4250gr (with blades, no battery, no electronics)

• Main blade length: 2x 800mm

• Tail blade length: 3x 115

• Main rotor diameter: 1768 mm (with 800 mm blades included)

• Tail rotor diameter: 305 mm (with 115 mm tail blades included)

• Cyclic Servos: standard size 40mm

• Tail Servo: standard size 40mm.

• Main Rotor ratio: 11.8 to 8.4 (21T included: 10.1:1)

• Tail Rotor ratio: 5.0-4.8:1 (26T included: 4.9:1)

• Typical motor: 4530 series

• Typical speed controller: 12S, 160-200 A

• Battery size: 12S 5500 mAh.

Kit upgrades
Total price
GOBLIN MAVERICK $1,748.00
Total $1,748.00

Helicopter Main Data

Configuration 800
Available P/N SG800
Main rotor diameter 1768mm
Main blade length 800mm
Tail rotor diameter 305mm
Tail blade length 115mm
Main shaft diameter 12nn
Tail shaft diameter 6mm
Weight 4250gr

Helicopters Secondary Data

Cyclic Servos Standard size 40 mm
Tail Servo Standard size 40 mm
Typical speed controller 200A
Maximum motor size 62mm diameter x 70mm height
Motor KV 460-500KV
Battery compartment 56mm x 70mm x 320mm
Battery capacity 12S 5000/5500 mAh
Available ratios From 8.4 to 11.8

Spare Parts

Nylon Nut M2.5
HC200-S Nylon Nut M2.5
$5.50
Nylon Nut M3
HC206-S Nylon Nut M3
$4.50
Strap 20x250mm
HA041-S Strap 20x250mm
$7.00
Battery Guide
H1067-S Battery Guide
$21.00
Canopy Base
H1101-S Canopy Base
$24.00
Blade Grip
H1044-S Blade Grip
$36.00
Swashplate set
H1047-S Swashplate set
$56.00
Tail Side Plate
H1097-S Tail Side Plate
$21.00
Boom Support
H1061-S Boom Support
$32.00
Nylon Bolts
HC546-S Nylon Bolts
$16.00
Motor Support
H1058-S Motor Support
$42.00
Tail Blades Grip
H1033-S Tail Blades Grip
$43.00
Damper
H1046-S Damper
$10.00
Reference Pin
H1048-S Reference Pin
$5.00
ESC Support
H1068-S ESC Support
$21.00
Frame Spacer
H1076-S Frame Spacer
$10.00
Bell Crank
H1090-S Bell Crank
$24.00
Bell Crank Support
H1095-S Bell Crank Support
$10.00
Battery Tray
H1102-S Battery Tray
$21.00
Wire Cover
H1107-S Wire Cover
$9.00
Tail Slider Bush
H1115-S Tail Slider Bush
$6.00
Grease LDS
HA075-S Grease LDS
$11.00
Grease NBU
HA076-S Grease NBU
$11.00
Set Screw M5x 16
HC543-S Set Screw M5x 16
$5.50
Pulley HTD 3M - Z26
H1098-26-S Pulley HTD 3M - Z26
$25.00
Damper Kit Set
H1135-S Damper Kit Set
$21.00
Antenna Support
H1134-S Antenna Support
$7.00
Motor Belt
HC601-S Motor Belt
$29.00
One Way Bearing
HC602-S One Way Bearing
$31.00
Center Hub Genesis
H1387-S Center Hub Genesis
$66.00
CF X-cross Plate
H1390-S CF X-cross Plate
$10.00
Landing Gear Mount
H1320-S Landing Gear Mount
$22.00
CF tail Side Plate
H1322-S CF tail Side Plate
$14.00
FBL/RX Support
H1268-S FBL/RX Support
$23.00
Slant Main Gear
H1276-S Slant Main Gear
$62.00
Top Main Case
H1266-S Top Main Case
$64.00
Maverick Tail Fin
H1419-S Maverick Tail Fin
$29.00
Maverick Canopy Maverick Canopy
H1422-S Maverick Canopy
$169.00
Maverick Air Wing
H1523-S Maverick Air Wing
$89.00
Tail Belt 2250-6mm
HC613-S Tail Belt 2250-6mm
$48.00
Goblin Urukay GENESIS Manual

Goblin Urukay GENESIS Manual

Goblin URK Maverick Manual

Goblin URK Maverick Manual
