SG745

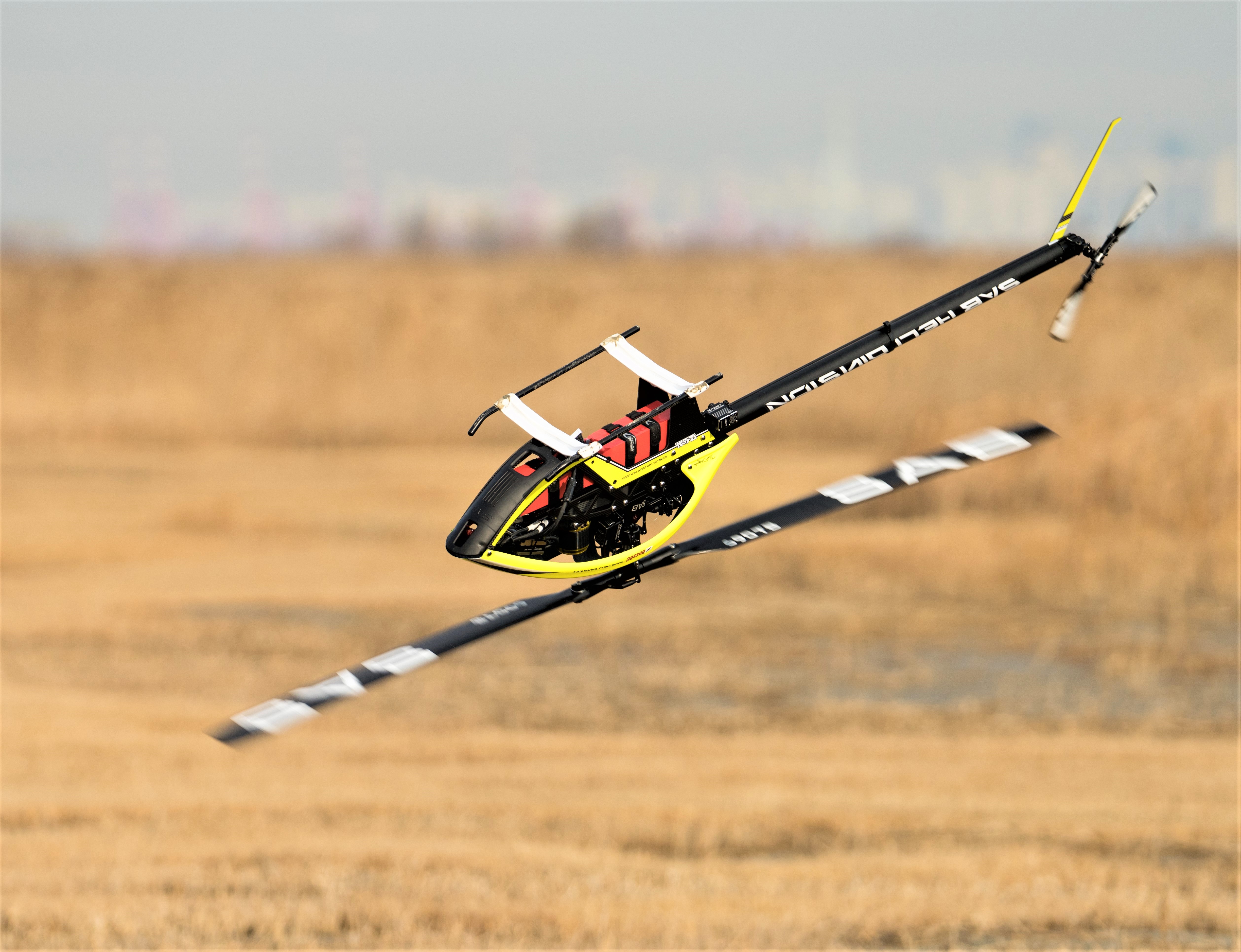

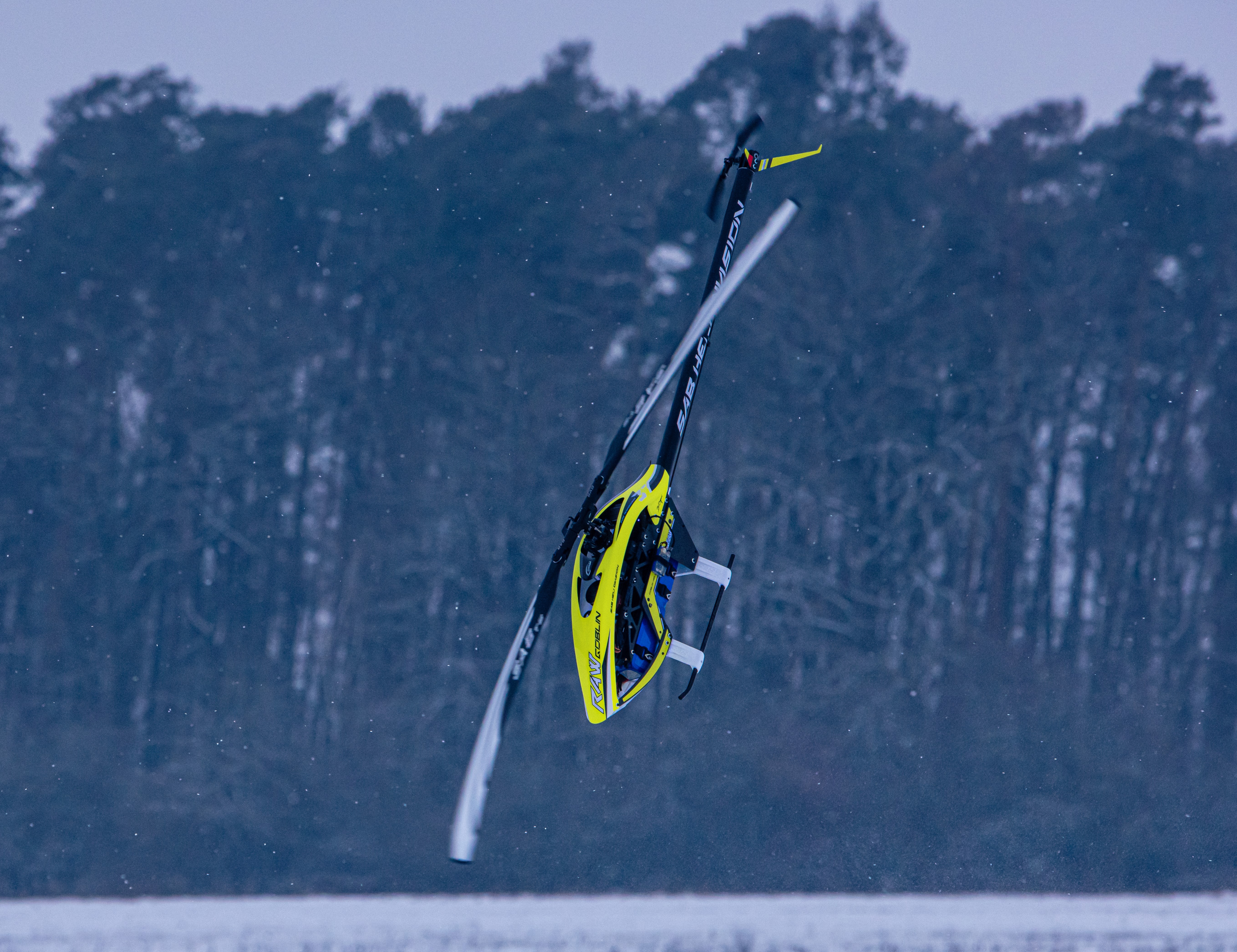

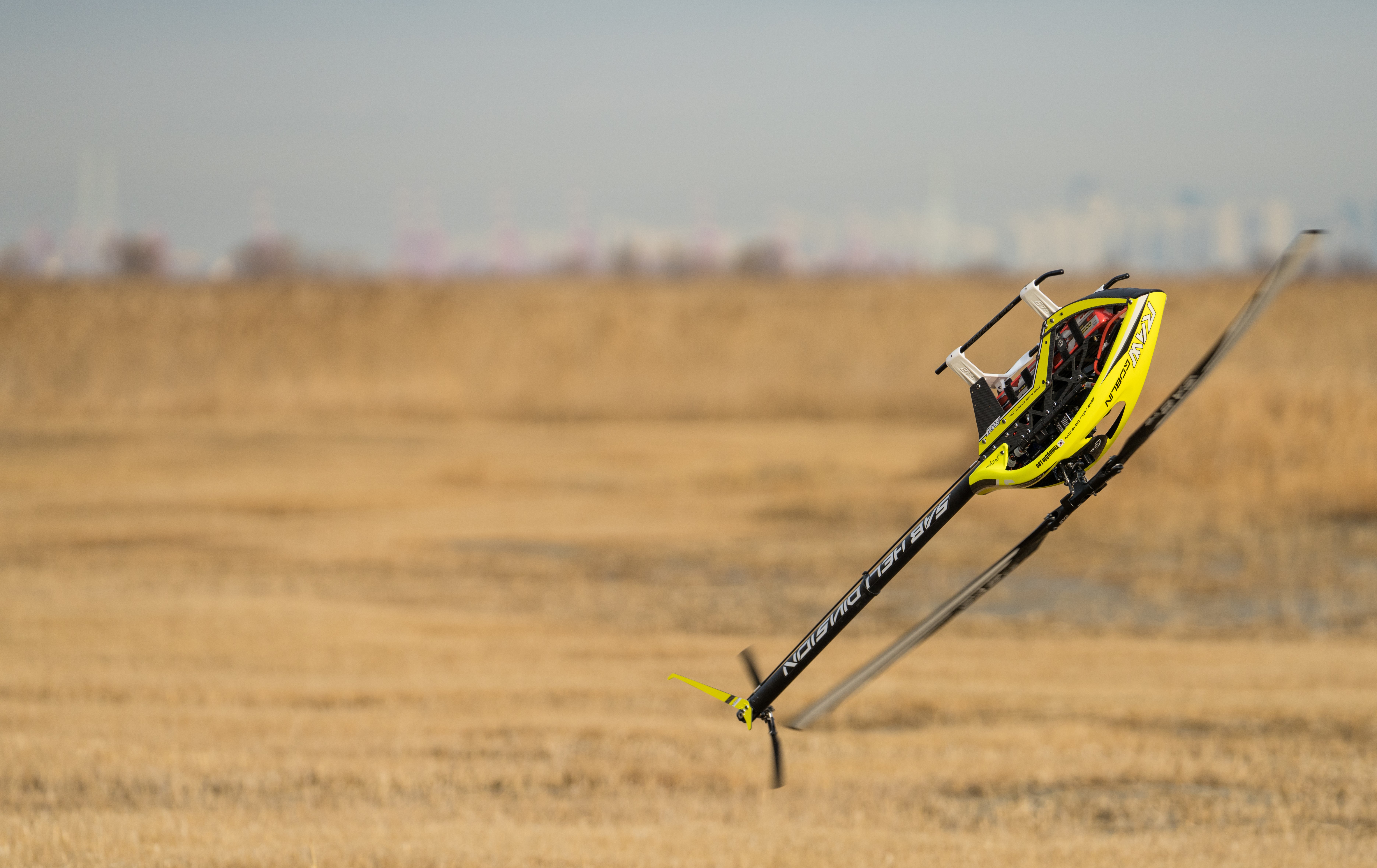

GOBLIN RAW 700 YELLOW

SKU: SG745 bar code: 8935254816324
Availability: Out of stock
Purchase and Earn 939 Points
$939.00
GOBLIN RAW 700 YELLOW

TECHNICAL SPECIFICATIONS

• AIRFRAME weight: 2620gr (with blades, no battery, no electronics)

• Main blade length: 650mm to 720mm

• Tail blade length: 105 to 115 mm

• Main rotor diameter: 1548 mm (with 690 mm blades included)

• Tail rotor diameter: 284 mm (with 105 mm tail blades included)

• Cyclic Servos: standard size 40mm

• Tail Servo: standard size 40mm.

• Main Rotor ratio: 11.8 to 8.4 (21T included: 10.1:1)

• Tail Rotor ratio: 5.0-4.8:1 (26T included: 4.9:1)

• Typical motor: 4525 series

• Typical speed controller: 12S, 160-200 A

• Battery size: 12S 4500-5500 mAh.

Kit upgrades
Total price
GOBLIN RAW 700 YELLOW $939.00
Total $939.00
Out of stock

Helicopter Main Data

RAW spec1
Configuration 700
Available P/N SG745
Main rotor diameter 1548mm
Main blade length 690mm
Tail rotor diameter 284mm
Tail blade length 105mm
Main shaft diameter 12mm
Tail shaft diameter 6mm
Weight 2620g (with blades, no battery, no electronic)

Helicopters Secondary Data

Cyclic Servos Standard size 40mm
Tail Servo Standard size 40mm
Typical speed controller 200A
Maximum motor size 62 mm diameter x 70 mm height
Motor KV 500-560KV
Battery compartment 56mmx60mmx320mm
Battery capacity 12S 4200/5500 mAh
Available ratios From 8.4 to 11.8

Spare Parts

Nylon Nut M2.5
HC200-S Nylon Nut M2.5
$5.00
Nylon Nut M3
HC206-S Nylon Nut M3
$4.00
Strap 20x250mm
HA041-S Strap 20x250mm
$6.00
Battery Guide
H1067-S Battery Guide
$19.00
Blade Grip
H1044-S Blade Grip
$33.00
Swashplate set
H1047-S Swashplate set
$56.00
Tail Shaft
H1089-S Tail Shaft
$18.00
Landing Gear Rod
H1071-S Landing Gear Rod
$24.00
Motor Support
H1058-S Motor Support
$39.00
Tail Blades Grip
H1033-S Tail Blades Grip
$39.00
Blade Grip Arm 30
H1045-S Blade Grip Arm 30
$19.00
Reference Pin
H1048-S Reference Pin
$4.00
Bell Crank
H1090-S Bell Crank
$24.00
Battery Tray
H1102-S Battery Tray
$19.00
Wire Cover
H1107-S Wire Cover
$9.00
Tail Pitch Slider
H1112-S Tail Pitch Slider
$24.00
Tail Slider Bush
H1115-S Tail Slider Bush
$6.00
Grease LDS
HA075-S Grease LDS
$9.90
Grease NBU
HA076-S Grease NBU
$9.90
Set Screw M5x 16
HC543-S Set Screw M5x 16
$5.00
Oring 80 shore
HC530-S Oring 80 shore
$6.00
Oring 95 shore
HC529-S Oring 95 shore
$6.00
Pulley HTD 3M - Z26
H1098-26-S Pulley HTD 3M - Z26
$24.00
Main Shaft
H1054-S Main Shaft
$18.00
Damper Kit Set
H1135-S Damper Kit Set
$19.00
Blade Grip Arm 26mm
H1045-B-S Blade Grip Arm 26mm
$19.00
White Landing Gear
H1070-W-S White Landing Gear
$15.00
Antenna Support
H1134-S Antenna Support
$6.00
MAIN BLADES 690TBS
690TBS MAIN BLADES 690TBS
$114.00
Motor Belt
HC601-S Motor Belt
$26.00
One Way Bearing
HC602-S One Way Bearing
$29.00
Hardware Set
HC603-S Hardware Set
$19.00
Main Case Top
H1370-S Main Case Top
$14.00
Rear Boom Claim
H1371-S Rear Boom Claim
$16.00
CF ESC Mount
H1362-S CF ESC Mount
$11.00
Battery Hatch
H1347-S Battery Hatch
$9.00
Canopy Spacer
H1348-S Canopy Spacer
$9.00
FBL/RX Support
H1268-S FBL/RX Support
$19.00
Slant Main Gear
H1276-S Slant Main Gear
$60.00
Belt Tensioner
H1278-S Belt Tensioner
$16.00
Top Main Case
H1266-S Top Main Case
$59.00
Aluminum Tail Case
H1195-S Aluminum Tail Case
$29.00
CF Tail Fin
H1196-S CF Tail Fin
$18.00
Tensioner Idle
H1066-S Tensioner Idle
$14.00
Goblin RAW 700 Manual

Goblin RAW 700 Manual
