-25%

SG725

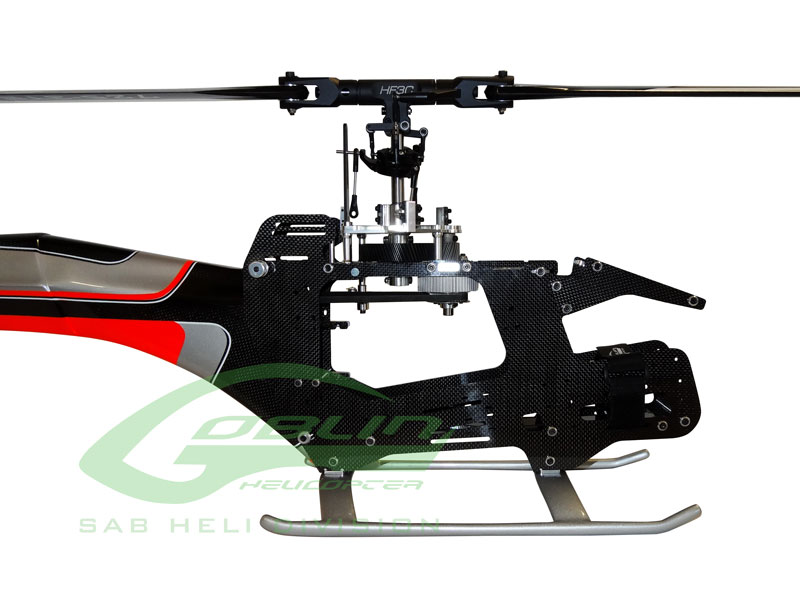

Goblin Urukay Carbon Edition

SKU: SG725 bar code: 8935254809746
Availability: Low stock
Purchase and Earn 1230 Points
$1,640.00 $1,230.00
Goblin Urukay Carbon Edition
Goblin Urukay Carbon Edition
Risorsa 1
Blade Size 730
icona-peso
Weight (no battery/fuel) 4190g
battery-icon_1
Power supply 12S 5500 mAh

 We are proud to announce the Urukay CARBON

This machine got the 1st and 3th place to last European championship with Ennio Graber and Daniele Duzzi

The graphics scheme is perfect for the competition.

The HF3C rotor head ( 2 blades ) was developed for the best result in F3C style flight.

The new Carbon fuselage is made with new process and now is very light

The new Fin is separate and with a new design. It is increase the tail rotor efficency

The new frame is compatible with ESC in top position and ESC in bottom position

Ennio Graber:

The new Goblin Urukay Carbon with its important changes, improves an already successful helicopter and makes it the pinnacle for competitions.

The differences and versatility of the Urukay Carbon allow you to experience a new dimension of model helicopter flight.

We are proud to announce the Urukay CARBON



This machine got the 1st and 3rd place to last European championship with Ennio Graber and Daniele Duzzi

The graphics scheme is elegant and aggressive .

The HF3C rotor head ( 2 blades ) was developed for the best result in F3C style flight.

The new Carbon fuselage is made with a new process and now is very light

The new Fin is separable from the boom and it has a new design. It has been increased the tail rotor efficiency

The new frame is compatible with ESC in top position and ESC in bottom position


Ennio Graber say:

The new Goblin Urukay Carbon with its important changes, improves an already successful helicopter and makes it the pinnacle for competitions.The differences and versatility of the Urukay Carbon allow you to experience a new dimension of model helicopter flight.

Kit Includes:

• 20T motor pulley (other pulley sizes available)
• 2 battery tray
• 730TB (730 mm main blades)
• 115TB  (115 mm tail blades)

The following motor pulleys are available:

18T Pulley (P/N H0175-18-S) Ratio 11.9:1
19T Pulley (P/N H0175-19-S) Ratio 11.3:1
20T Pulley (P/N H0175-20-S) Ratio 10.7:1
21T Pulley (P/N H0175-21-S) Ratio 10.2:1

22T Pulley (P/N H0175-22-S) Ratio 9.8:1
23T Pulley (P/N H0175-23-S) Ratio 9.3:1
24T Pulley (P/N H0175-24-S) Ratio 8.9:1
26T Pulley (P/N H0175-26-S) Ratio 8.6:1

Total price
Goblin Urukay Carbon Edition $1,230.00
Total $1,230.00

Helicopter Main Data

SG725-data
Configuration 770
Available P/N SG725-SG726-SG727
Main rotor diameter 1654mm
Main blade length 730mm
Tail rotor diameter 284mm
Tail blade length 105mm
Main shaft diameter 12mm
Tail shaft diameter 6mm
Weight 4190g (ex. Battery)

Helicopters Secondary Data

Cyclic Servos Standard size 40mm
Tail Servo Standard size 40mm
Typical speed controller 120-160A
Maximum motor size 64 mm diameter x 64 mm height
Motor KV 520KV
Battery compartment 75x58x350mm
Battery capacity 12S 5500 mAh
Available ratios From 8.6 to 11.9
