Goblin Urukay Carbon Ennio Graber Edition

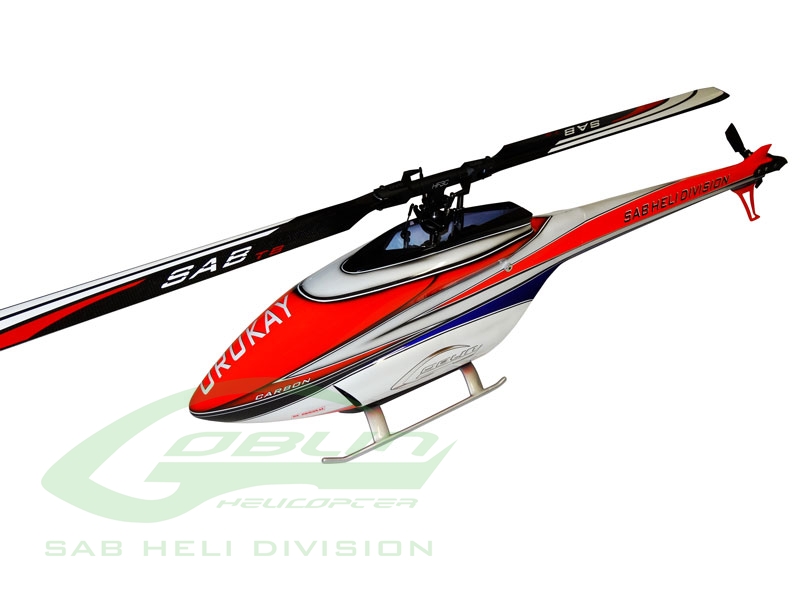

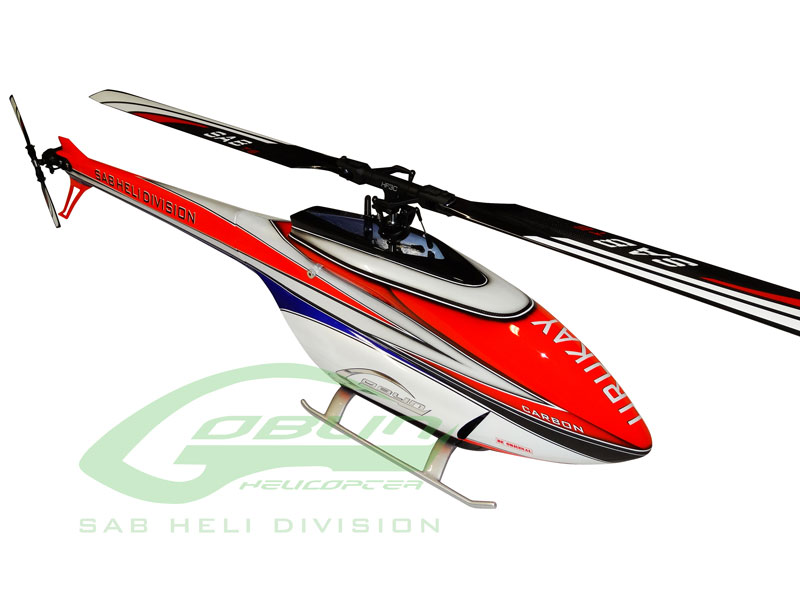

 We are proud to announce the Urukay CARBON

This machine got the 1st and 3th place to last European championship with Ennio Graber and Daniele Duzzi

The graphics scheme is perfect for the competition.

The HF3C rotor head ( 2 blades ) was developed for the best result in F3C style flight.

The new Carbon fuselage is made with new process and now is very light

The new Fin is separate and with a new design. It is increase the tail rotor efficency

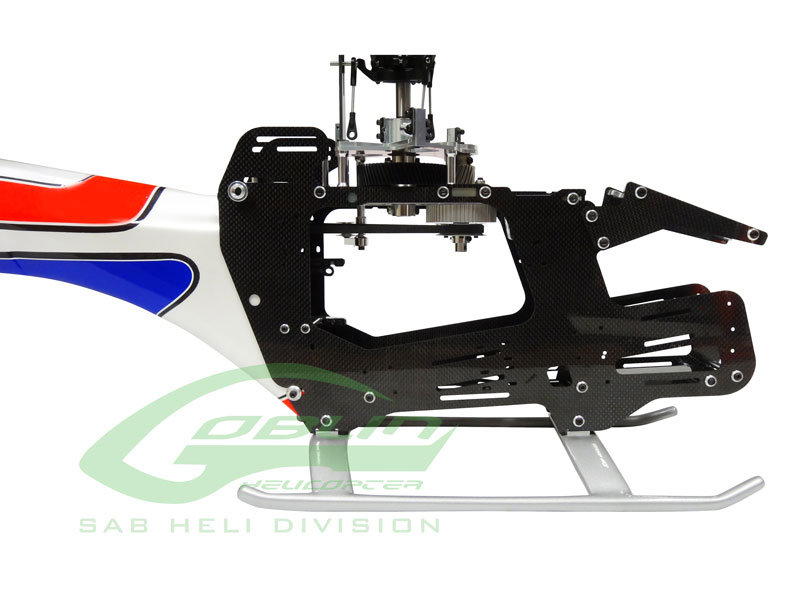

The new frame is compatible with ESC in top position and ESC in bottom position

Ennio Graber:

The new Goblin Urukay Carbon with its important changes, improves an already successful helicopter and makes it the pinnacle for competitions.

The differences and versatility of the Urukay Carbon allow you to experience a new dimension of model helicopter flight.

We are proud to announce the Urukay CARBON

This machine got the 1st and 3rd place to last European championship with Ennio Graber and Daniele Duzzi

The graphics scheme is perfect for the competition.

The HF3C rotor head ( 2 blades ) was developed for the best result in F3C style flight.

The new Carbon fuselage is made with a new process and now is very light

The new Fin is separable from the boom and it has a new design. It has been increased the tail rotor efficiency.

The new frame is compatible with ESC in top position and ESC in bottom position

Ennio Graber say: The new Goblin Urukay Carbon with its important changes, improves an already successful helicopter and makes it the pinnacle for competitions.The differences and versatility of the Urukay Carbon allow you to experience a new dimension of model helicopter flight.

General Specifications
Electronic Specifications

• Main rotor diameter:  1654 mm (with 730 mm blades)
• HF3C Head ( p/n H0825-K )
• Main blade length: up to 750 mm
• Tail rotor diameter: 284 mm
• Tail blade length: 105 mm
•  Main shaft diameter: 12 mm
• Tail shaft diameter: 6 mm
• Spindle shaft diameter: 10 mm
• Gear Ratios 8.6-11.9 : 1

• Weight including electronics: 4280 g (excluding flight battery).
• 20T motor pulley included (other pulley sizes available)
• All pulleys are made for 6 and 8 mm motor shaft

• Cyclic Servos: Standard size (40mm)
• Tail Servo: Standard size (40mm)
• Typical Speed Controller: 120-160A
• Motors: (Max Diameter: 64 mm, Max Height: 64 mm)
• Battery compartment: until 75x58x350mm

Kit Includes:

• 20T motor pulley (other pulley sizes available)
• 2 battery tray
• 730TB (730 mm main blades)
• 105TB  (105 mm tail blades)

The following motor pulleys are available:

18T Pulley (P/N H0175-18-S) Ratio 11.9:1
19T Pulley (P/N H0175-19-S) Ratio 11.3:1
20T Pulley (P/N H0175-20-S) Ratio 10.7:1
21T Pulley (P/N H0175-21-S) Ratio 10.2:1

22T Pulley (P/N H0175-22-S) Ratio 9.8:1
23T Pulley (P/N H0175-23-S) Ratio 9.3:1
24T Pulley (P/N H0175-24-S) Ratio 8.9:1
26T Pulley (P/N H0175-26-S) Ratio 8.6:1

• New HF3C Head ( p/n H0825-K) • Full carbon Canopy / boom, super light • Interchangeable tail fin

• ThunderBolt F3C dedicated Blades

• New frame for ESC multi position (Top position) • New frame for ESC multi position (Bottom position) • Full CNC main gear

• 19 mm GT3 motor belts, double one-way bearing

• H0458-S. Delrin CNC anti-rotation guide for increased precision. Removes swashplate radial play almost in its entirety.

• HM054. The new tools are available in 1.5, 2, 2.5 and 3mm sizes.

• HM060. Specifically designed for the Goblin Urukay. Allows for safe transport and protects from minor bumps and scratches.

• H0732-S. Carbon Fuselage for paint your preferred design.

• H0430BM-K. HPS3 HEAD BLACK MATTE. Kit conversion to the 3 bladed rotor head.( blades are not included)

• H0429BM-K.3 TAIL BLADES ROTOR BLACK MATTE. Kit conversion to 3 bladed tail rotor.(Tail blades are not included )

• HM055 - SAB Transmitter Case. Allows for safe transport and protects from bumps and scratches.

• H0482-90-S - HF3C DAMPER 90 SHORE
