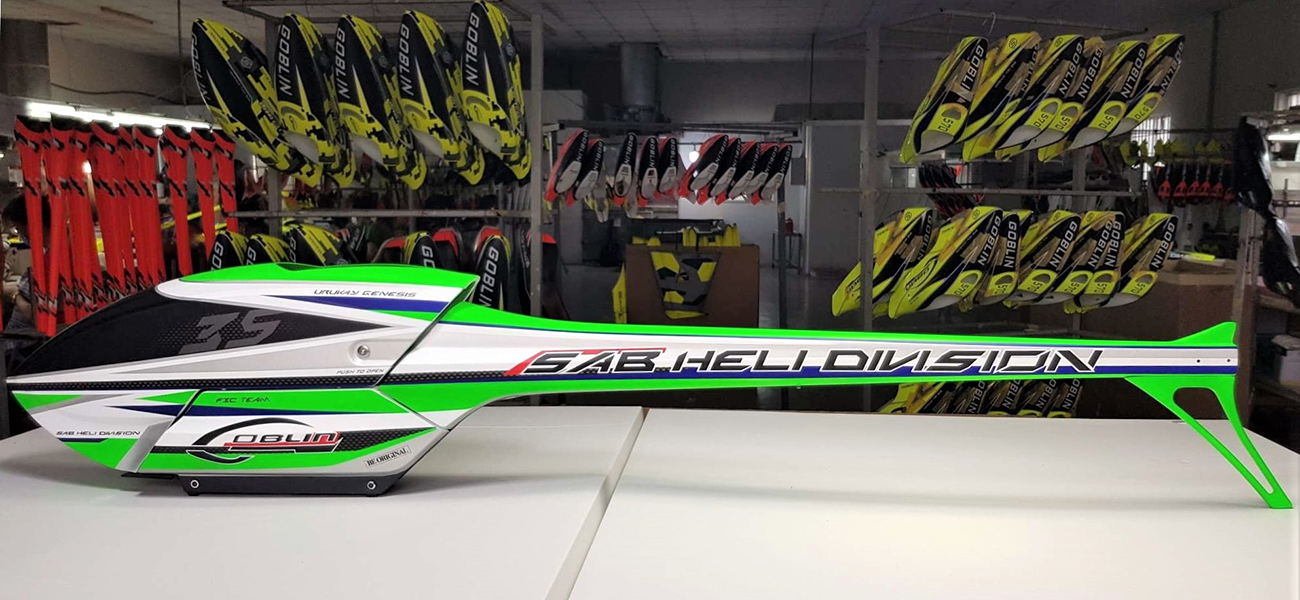

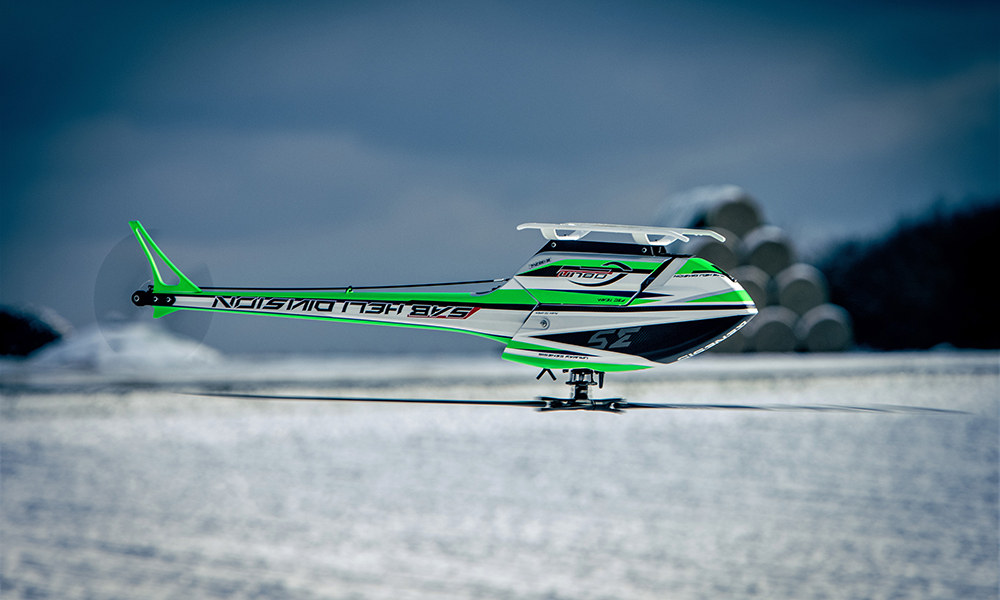

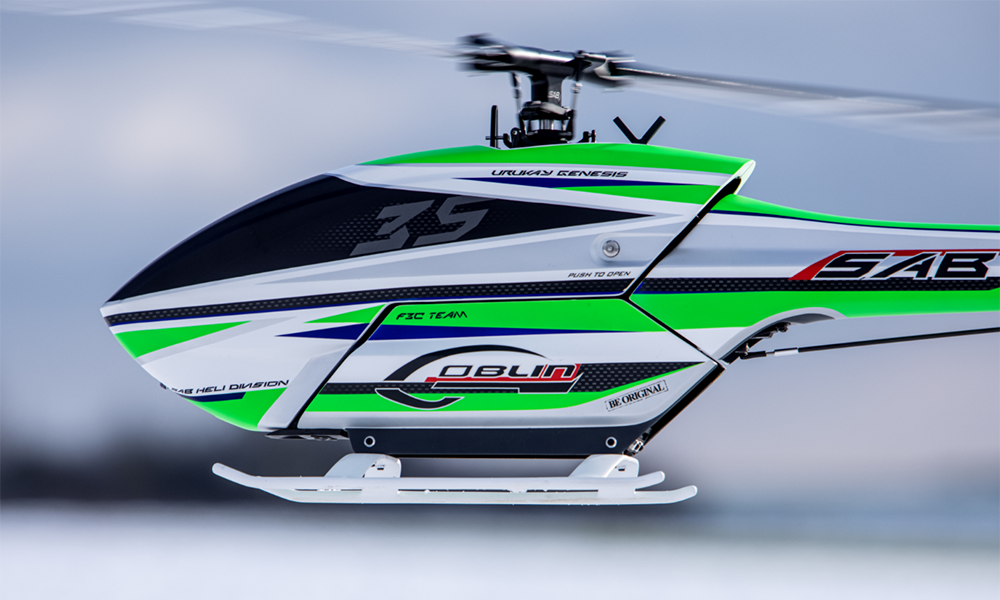

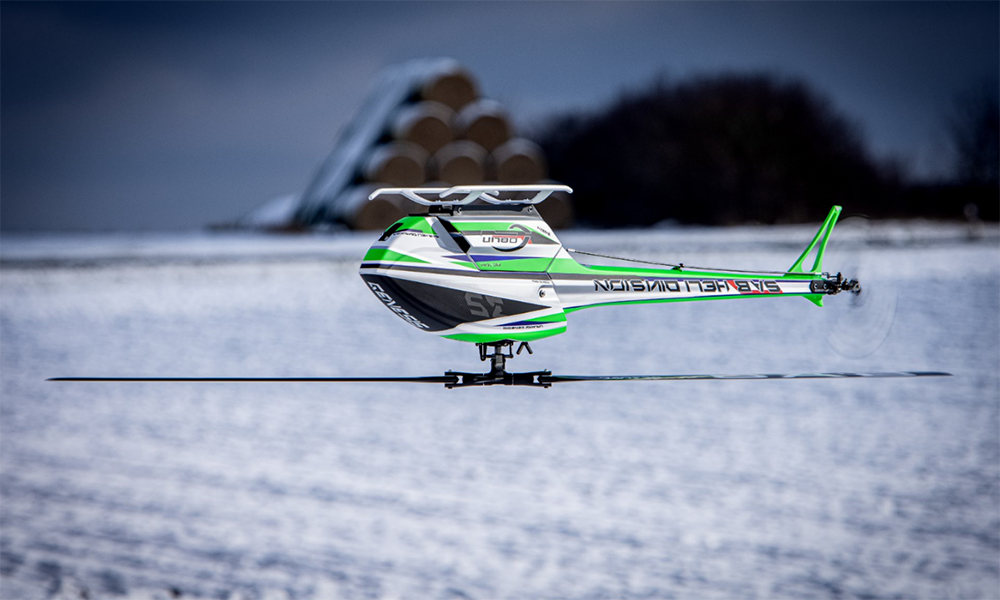

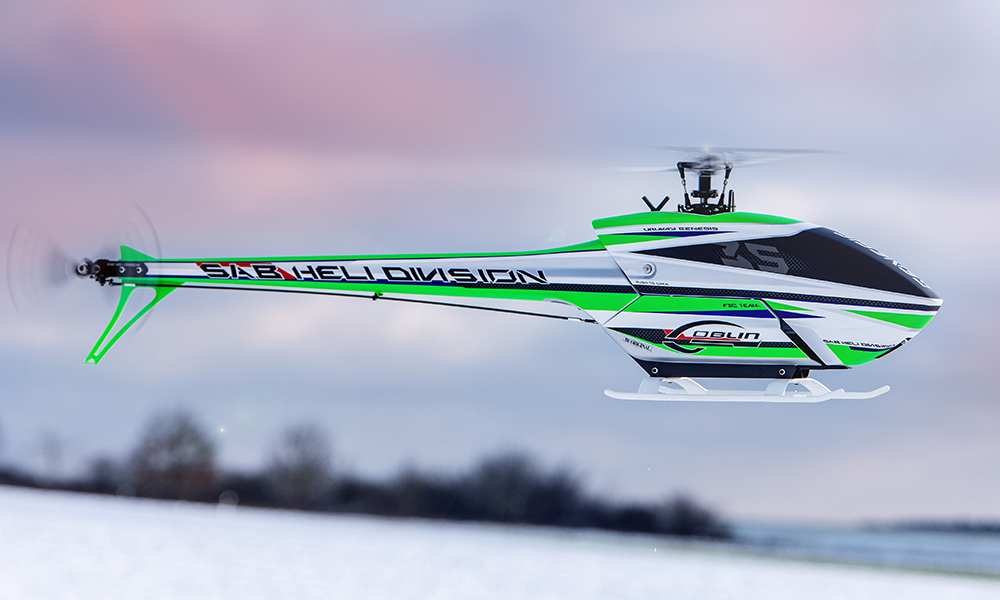

SG747

GOBLIN URUKAY GENESIS

SKU: SG747 bar code: 8935254816430
Availability: Out of stock
Purchase and Earn 1640 Points
$1,640.00
GOBLIN URUKAY GENESIS

TECHNICAL SPECIFICATIONS

• AIRFRAME weight: 2950gr (with blades, no battery, no electronics)

• Main blade length: 690mm to 760mm

• Tail blade length: 105 to 115 mm

• Main rotor diameter: 1670 mm (with 747 mm blades included)

• Tail rotor diameter: 284 mm (with 105 mm tail blades included)

• Cyclic Servos: standard size 40mm

• Tail Servo: standard size 40mm.

• Main Rotor ratio: 11.8 to 8.4 (21T included: 10.1:1)

• Tail Rotor ratio: 5.0-4.8:1 (26T included: 4.9:1)

• Typical motor: 4525 series

• Typical speed controller: 12S, 160-200 A

• Battery size: 12S 4500-5500 mAh.

Kit upgrades
Total price
GOBLIN URUKAY GENESIS $1,640.00
Total $1,640.00
Out of stock

Helicopter Main Data

Genesis spec 1
Configuration 750
Available P/N SG747
Main rotor diameter 1670mm
Main blade length 747mm
Tail rotor diameter 284mm
Tail blade length 105mm
Main shaft diameter 12mm
Tail shaft diameter 6mm
Weight 2950gr (with blades, nobattery, no electronic)

Helicopters Secondary Data

Cyclic Servos Standard size 40mm
Tail Servo Standard size 40mm
Typical speed controller 130A
Maximum motor size 62 mm diameter x 70 mm height
Motor KV 500-560KV
Battery compartment 56mmx70mmx320mm
Battery capacity 12S 4200/5500 mAh
Available ratios From 8.4 to 11.8

Spare Parts

Nylon Nut M2.5
HC200-S Nylon Nut M2.5
$5.00
Nylon Nut M3
HC206-S Nylon Nut M3
$4.00
Battery Guide
H1067-S Battery Guide
$19.00
Canopy Base
H1101-S Canopy Base
$24.00
Blade Grip
H1044-S Blade Grip
$33.00
Swashplate set
H1047-S Swashplate set
$56.00
Tail Shaft
H1089-S Tail Shaft
$18.00
Tail Side Plate
H1097-S Tail Side Plate
$19.00
Nylon Bolts
HC546-S Nylon Bolts
$16.00
Motor Support
H1058-S Motor Support
$39.00
Tail Blades Grip
H1033-S Tail Blades Grip
$39.00
Reference Pin
H1048-S Reference Pin
$4.00
ESC Support
H1068-S ESC Support
$19.00
Bell Crank
H1090-S Bell Crank
$24.00
Battery Tray
H1102-S Battery Tray
$19.00
Wire Cover
H1107-S Wire Cover
$9.00
Tail Pitch Slider
H1112-S Tail Pitch Slider
$24.00
Tail Slider Bush
H1115-S Tail Slider Bush
$6.00
Set Screw M5x 16
HC543-S Set Screw M5x 16
$5.00
Oring 80 shore
HC530-S Oring 80 shore
$6.00
Oring 95 shore
HC529-S Oring 95 shore
$6.00
Pulley HTD 3M - Z26
H1098-26-S Pulley HTD 3M - Z26
$24.00
Damper Kit Set
H1135-S Damper Kit Set
$19.00
Antenna Support
H1134-S Antenna Support
$6.00
MAIN BLADES 747TBS
747TBS MAIN BLADES 747TBS
$149.00
Motor Belt
HC601-S Motor Belt
$26.00
One Way Bearing
HC602-S One Way Bearing
$29.00
Center Hub Genesis
H1387-S Center Hub Genesis
$56.00
CF X-cross Plate
H1390-S CF X-cross Plate
$9.00
Tail Fin Genesis
H1377-S Tail Fin Genesis
$26.00
Genesis Canopy
H1316-S Genesis Canopy
$139.00
Genesis Boom
H1319-S Genesis Boom
$149.00
Landing Gear Mount
H1320-S Landing Gear Mount
$19.00
CF tail Side Plate
H1322-S CF tail Side Plate
$12.00
FBL/RX Support
H1268-S FBL/RX Support
$19.00
Slant Main Gear
H1276-S Slant Main Gear
$60.00
Top Main Case
H1266-S Top Main Case
$59.00
Goblin Urukay GENESIS Manual

Goblin Urukay GENESIS Manual
