SG727

GOBLIN URUKAY WC

SKU: SG727 bar code: 8935254812456
Availability: In stock
Purchase and Earn 1640 Points
$1,640.00
GOBLIN URUKAY WC
GOBLIN URUKAY WC
Risorsa 1
Blade Size 730

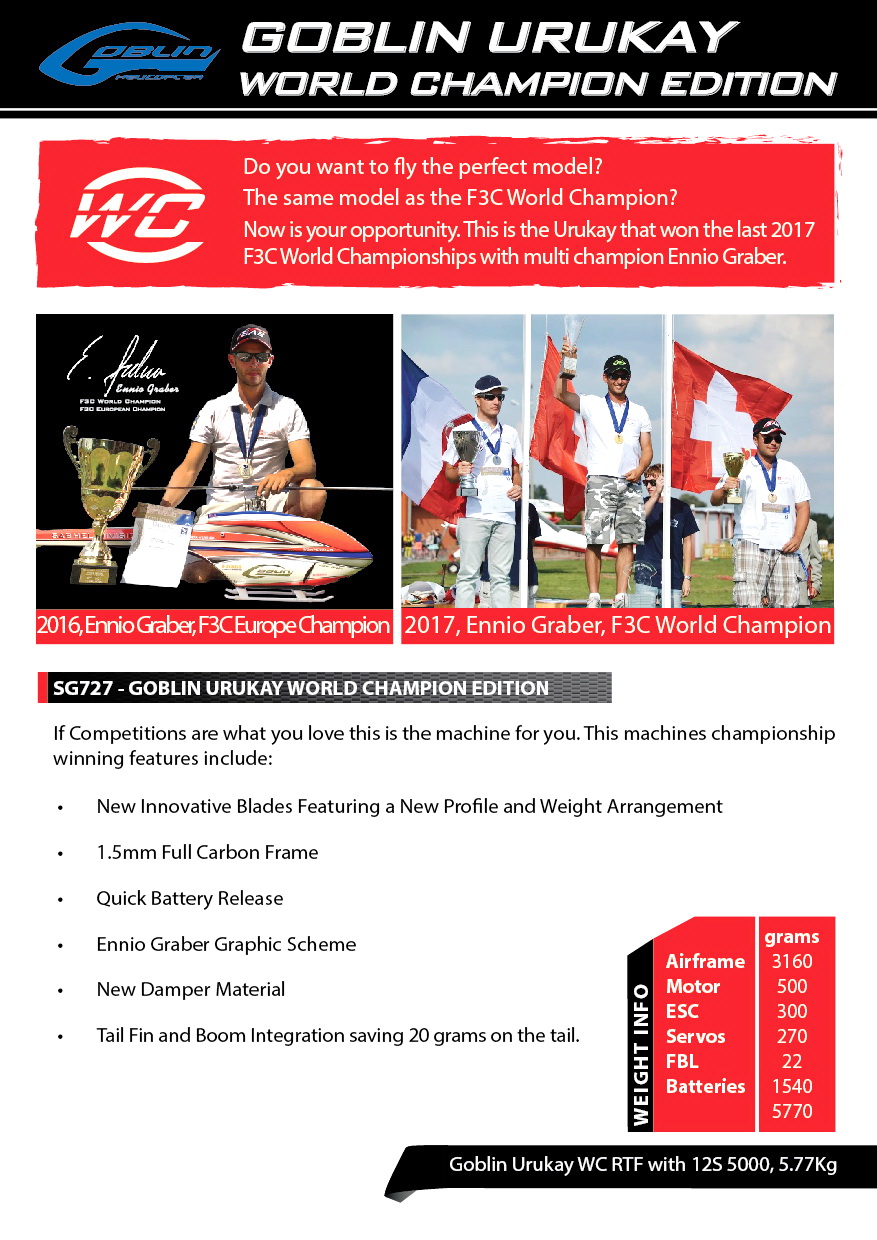

URUKAY WORLD CHAMPION EDITION

Do you want to fly the perfect model?

The same model as the F3C World Champion?

Now is your opportunity. This is the Urukay that won the F3C World Championships with multi champion Ennio Graber

This machine got the 1st and 2nd place to last F3C World Championships with Ennio Graber and Hiroki Ito

Do you want to fly the perfect model?

The same model as the F3C World Champion? Now is your opportunity.

This is the Urukay that won the F3C World Championships with multi champion Ennio Graber

This machine got the 1st and 2nd place to last F3C World Championships with Ennio Graber and Hiroki Ito

Kit Includes:

• 20T motor pulley (other pulley sizes available)
• 2 battery tray
• 730WC (730 mm main blades)
• 105TB  (105 mm tail blades)

The following motor pulleys are available:

18T Pulley (P/N H0175-18-S) Ratio 11.9:1
19T Pulley (P/N H0175-19-S) Ratio 11.3:1
20T Pulley (P/N H0175-20-S) Ratio 10.7:1
21T Pulley (P/N H0175-21-S) Ratio 10.2:1

22T Pulley (P/N H0175-22-S) Ratio 9.8:1
23T Pulley (P/N H0175-23-S) Ratio 9.3:1
24T Pulley (P/N H0175-24-S) Ratio 8.9:1
26T Pulley (P/N H0175-26-S) Ratio 8.6:1

• Full carbon main frame 1.5 mm.
 ESC multi position ( top or bottom ) • New head system • F3C blades WC series

• Quick battery release set

• WC model graphics scheme • Canopy ultra light • Boom ultra light

• Tail Fin and Boom Integration saving 20 grams on the tail.

Total price
GOBLIN URUKAY WC $1,640.00
Total $1,640.00

Helicopter Main Data

SG725-data
Configuration 770
Available P/N SG725-SG726-SG727
Main rotor diameter 1654mm
Main blade length 730mm
Tail rotor diameter 284mm
Tail blade length 105mm
Main shaft diameter 12mm
Tail shaft diameter 6mm
Weight 4190g (ex. Battery)

Helicopters Secondary Data

Cyclic Servos Standard size 40mm
Tail Servo Standard size 40mm
Typical speed controller 120-160A
Maximum motor size 64 mm diameter x 64 mm height
Motor KV 520KV
Battery compartment 75x58x350mm
Battery capacity 12S 5500 mAh
Available ratios From 8.6 to 11.9

Spare Parts

Nylon Nut M2.5
HC200-S Nylon Nut M2.5
$5.00
Nylon Nut M3
HC206-S Nylon Nut M3
$4.00
FBL support Low
H0727-S FBL support Low
$10.00
Damper 90 shore
HC519-S Damper 90 shore
$7.00
Damper 70 shore
HC520-S Damper 70 shore
$7.00

Upgrades

SAB Tool Kit
HM054 SAB Tool Kit
$49.00
SAB Tool Case
HM053 SAB Tool Case
$19.00
HF3C Rotor head
H0825-K HF3C Rotor head
$262.00
