QT-4530-450

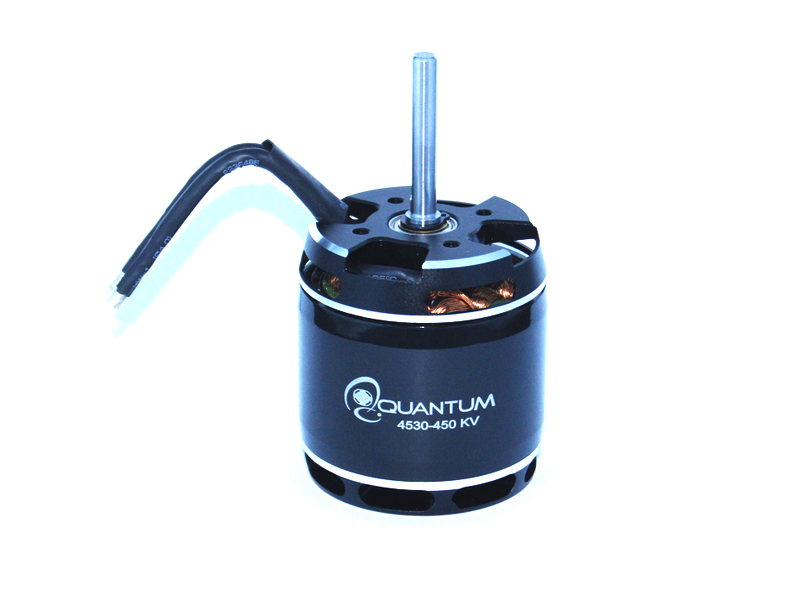

QUANTUM OUTRUNNER BRUSHLESS HELI MOTOR(4530- 450KV)

SKU: QT-4530-450 components.products.fields.barcode: 8935254807483
Availability: Out of stock
Purchase and Earn 299 Points
$299.99
Discontinued

Product description:

Constructed with the utmost in quality with the very best in high performance materials, Quantum has altered the very DNA of brushless power, bringing forth a true quantum shift in all manners of RC power. Specified with high quality bearings, high strength steel, lightweight aluminum, and amazingly powerful neodymium rare earth magnets, Quantum motors are ready to alter the very dynamics of your everyday flight. Quantum brushless motors are deigned to change the way you fly; prepare to take hold of true brushless power that will open new realms of RC flight.



Product Note:

- Delta Winding w/ Multi Strand Wires

- Design to fit perfectly on Goblin 770



Specifications:



Stator Diameter 45MM
Stator Thickness 30MM
No. of Magnetic Poles 10
No. of Stator Arms 12
Motor Kv 450 RPM/Volt
Max Continuous Current 125 Amps
Max Continuous Power 5000 Watts
Weight 556 Grams
Overall Shaft Length 102.85mm
No-Load Current (lo) 1.6 Amps@10V
Motor Resistance (Rm) 0.013 Ohms
Outside Diameter 56.8MM
Shaft Diameter 8MM to 6MM
Body Length 60.7MM
Bearings ABEC-3 Bearings (8x16x5) 688ZZ
