SG381
Replaced by SG389SAB GOBLIN 380 YELLOW/BLUE (with 380mm Black Line Main Blades)
The Goblin 380 provides incredible performance, reliability and simplicity with the unique and innovative Goblin look you are accustomed to!
Kit Includes:
21T motor pulley (other motor pulleys available)
BL 380 3D mm main blades

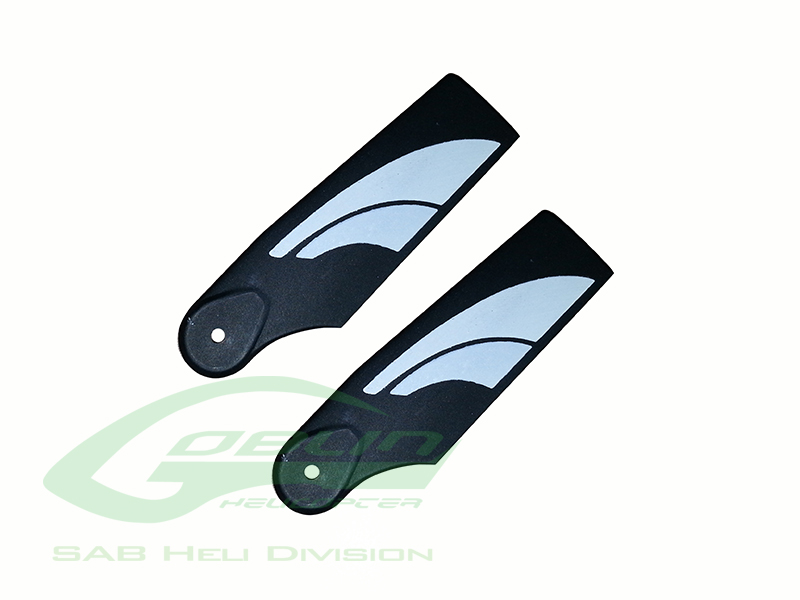

70 mm tail blades
2 Battery tray with straps and double tape
The following motor pulleys are available:
H0501-19-S - 19T Pinion = ratio 6.3:1
H0501-20-S - 20T Pinion = ratio 6:1
H0501-21-S - 21T Pinion = ratio 5.7:1
H0501-22-S - 22T Pinion = ratio 5.5:1
H0501-23-S - 23T Pinion = ratio 5.2:1
H0501-24-S - 24T Pinion = ratio 5:1
All these motor pulleys are for a 5 mm motor shaft.
Goblin Concept design.
Single stage transmission;
Heat tolerant primary drive belt;
Motor Belt Gates GT3 9 mm.
HPS (High Precision Head System);
8mm high strength steel main shaft;
5mm high strength steel spindle shaft;
New head with 2-piece blade grip preserves grips in the event of a crash.
Direct and geometrically correct servo placement;
Micro size cyclic servos.
Mini size tail servo.
Aluminum Motor mount.
Plenty of room for electronic components.
Very clean Cabling.
Quick release battery tray system
Big battery compartment;
wide selection of batteries with different capacities 6S 1500/2600 mAh.
Carbon fiber boom for very lightweight.
Nylon bolt break-away system to preserve the boom during a crash.
Dampened tail system for increased vibration tolerance;
Aluminum tail case for increased stiffness.
5mm high strength Tail shaft
Carbon fiber tail push rod hidden inside the boom for an aesthetically pleasing, unique design.
Landing gear Goblin Speed style.
Some example Setup configurations.
