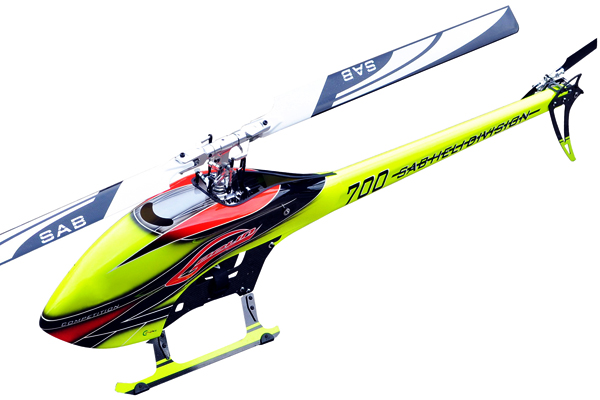

SAB GOBLIN 700 COMPETITION YELLOW/ORANGE (With main and tail blades)

General Specifications

Electronic Specifications

• Main rotor diameter:  1568 mm (with 690 mm blades)

• HPS Head

• Main blade length: 690-710 mm

• Tail rotor diameter: 305 mm

• Tail blade length: 115 mm

•  Main shaft diameter: 12 mm

• Tail shaft diameter: 6 mm

• Spindle shaft diameter: 10 mm

• Gear Ratios 8.6-11.9 : 1

• Weight including electronics: 3620 g (excluding flight battery).

• 22T motor pulley included (other pulley sizes available)

• All pulleys are made for 6 and 8 mm motor shaft

• Cyclic Servos: Standard size (40mm)

• Tail Servo: Standard size (40mm)

• Typical Speed Controller: 120-160A

• Motors: (Max Diameter: 64 mm, Max Height: 64 mm)

• Battery compartment: until 75x58x350mm

Kit Includes:

• 22T motor pulley (other pulley sizes available)

• 2 battery tray

• 690 mm main blades

• 115 mm tail blades

The following motor pulleys are available:

18T Pulley (P/N H0175-18-S) Ratio 11.9:1

19T Pulley (P/N H0175-19-S) Ratio 11.3:1

20T Pulley (P/N H0175-20-S) Ratio 10.7:1

21T Pulley (P/N H0175-21-S) Ratio 10.2:1

22T Pulley (P/N H0175-22-S) Ratio 9.8:1

23T Pulley (P/N H0175-23-S) Ratio 9.3:1

24T Pulley (P/N H0175-24-S) Ratio 8.9:1

26T Pulley (P/N H0175-26-S) Ratio 8.6:1

• New head with 2 piece blade grip, preserves grips in the event of a crash. New, stronger main linkage.

• New 2mm frames with increased rigidity, more room for batteries, ESC and 3 battery positions for optimum CG. • Motor belt 19 mm. Double one way-bearing

• Aluminum tail case for increased stiffness.

• New dampened tail rotor system, slop free, very durable.

• Battery tray. • Quick canopy release, allows for easy installation and removal of the canopy. • Canopy saver, protects the canopy edges from scuffing.
